• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25893

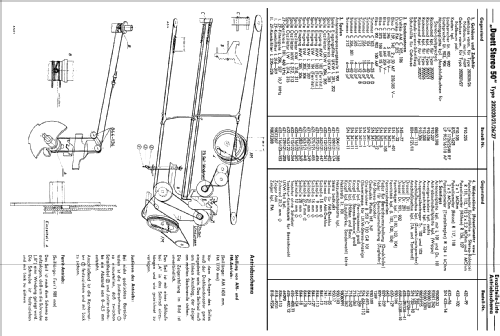

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EMM803 ECC83 ECLL800 ECLL800

• Number of Transistors
• 3

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

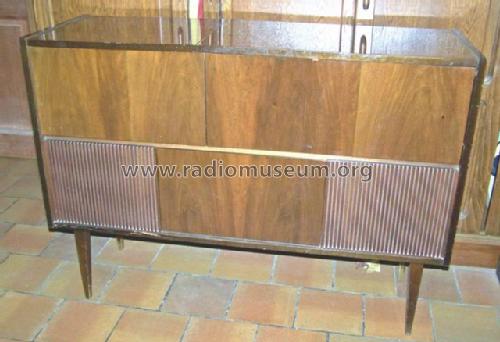

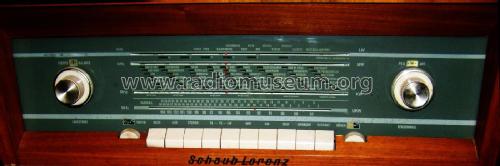

• Model: Duett Stereo 50 [poliert] - Schaub und Schaub-Lorenz

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1070 x 780 x 370 mm / 42.1 x 30.7 x 14.6 inch

• Notes
• Transistoren: AC125, 2× AC126 (im Stereo-Decoder).
  Rundfunk-Chassis = Westminster Stereo 50; Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 8,5 W;
  Phono-Chassis = Perpetuum-Ebner PE66.

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Price in first year of sale
• 1,248.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965
