Schaub und Schaub-: EK48 [Radio] ID = 53695 784x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model EK48, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: RV12P2000 UL71
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: EK48 - Schaub und Schaub-Lorenz
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes für E/Pdyn LS;nicht E2K48...??
Price in first year of sale 225.00 DM
Source of data Radiokatalog Band 1, Ernst Erb

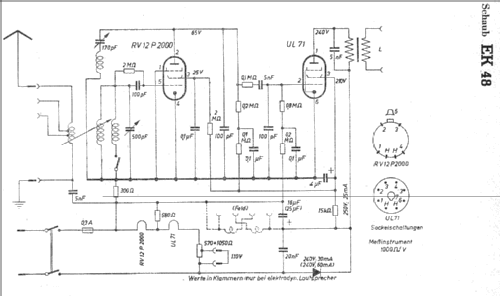

Circuit diagram reference Lange-Nowisch
Mentioned in Kat.Grosshd.Ges. 1948
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
