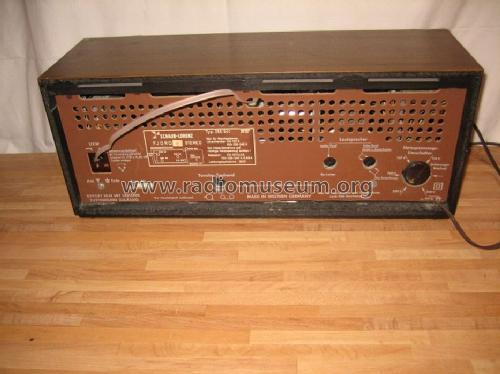

Schaub und Schaub-: Fjord S Stereo 250541 [Radio] ID = 750499 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fjord S Stereo 250541, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1966/1967 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF89 ECC83 ELL80 EMM803
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Fjord S Stereo 250541 - Schaub und Schaub-Lorenz
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 670 x 210 x 165 mm / 26.4 x 8.3 x 6.5 inch
Notes Transistoren: 4× AC125, 2× BF134, BF138; Dioden: 8× AA112, 2× AA113.
Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Endstufen je 2,5 W; rechter Lautsprecher abnehmbar.
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 465.00 DM
External source of data erb
Source of data Handbuch VDRG 1966/1967
Mentioned in Taxliste Franzis Verlag

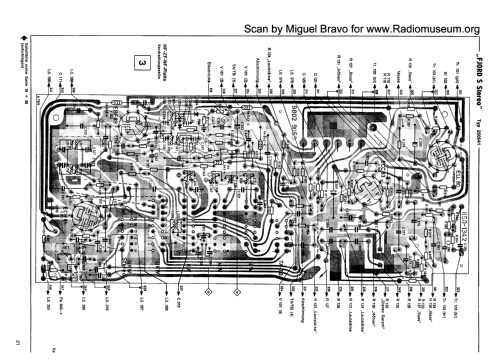

Literature/Schematics (1) -- Schematic (Schaub-Lorenz Service Rundfunkgeräte 1966/67)
