• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23842

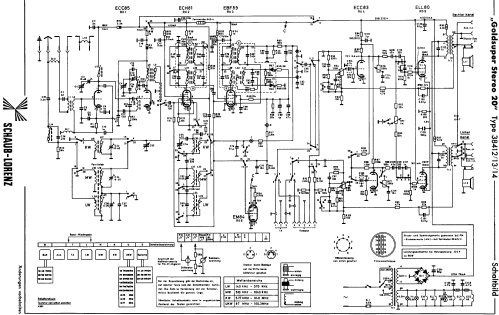

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84 ELL80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-117; 127; 220; 240-250 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 8.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

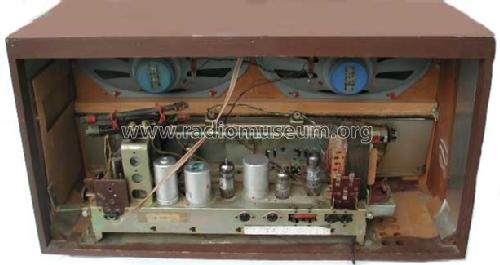

• Model: Goldsuper Stereo 20 Ch = 38412/13/14 - Schaub und Schaub-Lorenz

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 590 x 330 x 220 mm / 23.2 x 13 x 8.7 inch

• Notes
• Dioden: 2× OA79. Stereo-NF-Verstärker, 2 Endstufen je 3,5 W, Gegentaktbetrieb (8,5 W) bei Mono.

• Net weight (2.2 lb = 1 kg)
• 9.8 kg / 21 lb 9.4 oz (21.586 lb)

• Price in first year of sale
• 389.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62
