• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6039

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• UCH71 UCH71 UBL71

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, Short wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

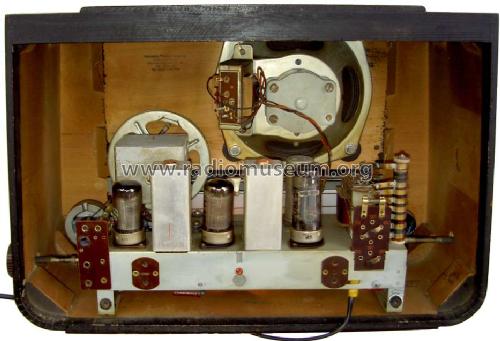

• Model: Kongress H - Schaub und Schaub-Lorenz

• Shape
• Tablemodel, low profile (big size).

• Notes
• Für UKW-Einsatz UE51.

• Price in first year of sale
• 235.00 DM

• External source of data
• Ernst Erb, HB9RXQ

• Circuit diagram reference
• Lange-Nowisch

• Other Models

• Here you find 965 models, 816 with images and 682 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
