Pirol 55

• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6016

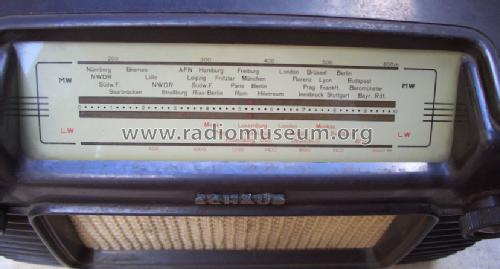

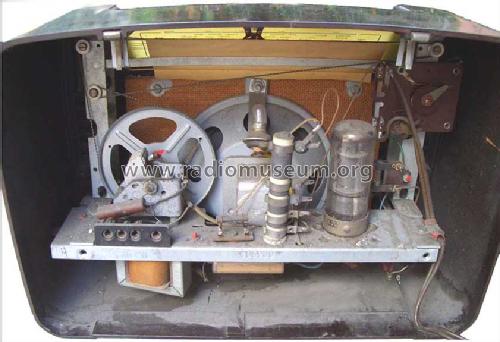

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• UEL71

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Pirol 55 - Schaub und Schaub-Lorenz

• Dimensions (WHD)
• 310 x 205 x 130 mm / 12.2 x 8.1 x 5.1 inch

• Notes

• Dial lamp: 18V/0,1A.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Price in first year of sale
• 82.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 1, Ernst Erb
