• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5987

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC75 OC74 OC74 OA70 OA257 OA257 E12,5C5

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / D: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.7 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

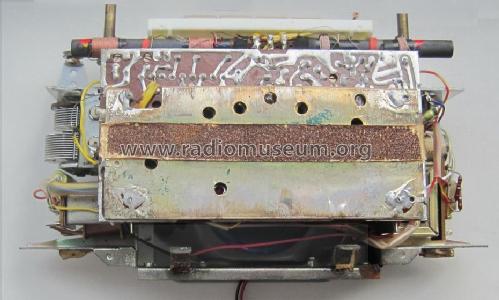

• Model: Polo T10 34080, 34081, 34082 - Schaub und Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 177 x 93 mm / 10.6 x 7 x 3.7 inch

• Notes

• Die erste NF-Stufe arbeitet gleichzeitig als Regelspannungsverstärker. Klangtaste.

  Gehäuse: Pressstoff, mit Kunstlederbezug in 3 Kombinationen, lindgrün/sand, korallenrot/sand und einfarbig sand, Trageriemen.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 168.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Handbuch RFP 1960/61, S. 235 (Thiele)

• Literature/Schematics (1)
• -- Original-techn. papers.
