Tiny S 150469 anthrazit

ID = 5974

Tiny S 150469 anthrazit; Schaub und Schaub- (ID = 78466) Radio

Tiny S 150469 anthrazit; Schaub und Schaub- (ID = 78464) Radio

Tiny S 150469 anthrazit; Schaub und Schaub- (ID = 78465) Radio

Tiny S 150469 anthrazit; Schaub und Schaub- (ID = 78461) Radio

{gbW: "1400", gbH: "1050", mW: "500", mH: "375", kb: "176 KB", notes: "For model Tiny S 150469 anthrazit, Schaub und Schaub-Lorenz", title: "Schaub und Schaub- Tiny S 150469 anthrazit from Milosav Zivojinovic (1)", ite: "1"} {gbW: "933", gbH: "699", mW: "500", mH: "375", kb: "105 KB", notes: "For model Tiny S 150469 anthrazit, Schaub und Schaub-Lorenz:[br]Koffer-Kleinsuper mit Bedienelementen, Betrieb 4x 1,5V AA-Batterie oder 6V-Ext.-Netzteil, Kopfhörerausgang", title: "Schaub und Schaub- Tiny S 150469 anthrazit from Sieghart Brodka † 24.2.17 (1)", ite: "1"} {gbW: "910", gbH: "700", mW: "487.0", mH: "375", kb: "59 KB", notes: "For model Tiny S 150469 anthrazit, Schaub und Schaub-Lorenz", title: "Schaub und Schaub- Tiny S 150469 anthrazit from Karlheinz Schneider (1)", ite: "1"} {gbW: "863", gbH: "700", mW: "462.0", mH: "375", kb: "98 KB", notes: "For model Tiny S 150469 anthrazit, Schaub und Schaub-Lorenz", title: "Schaub und Schaub- Tiny S 150469 anthrazit from Peter Seifert (1)", ite: "1"} {gbW: "933", gbH: "699", mW: "500", mH: "375", kb: "118 KB", notes: "For model Tiny S 150469 anthrazit, Schaub und Schaub-Lorenz:[br]Platinenaufbau, Transistor- u.andere Bauteile vielfach japanisch, re.das Batteriefach mit Typ-/Seriennr.", title: "Schaub und Schaub- Tiny S 150469 anthrazit from Sieghart Brodka † 24.2.17 (1)", ite: "1"} {gbW: "895", gbH: "700", mW: "479.0", mH: "375", kb: "105 KB", notes: "For model Tiny S 150469 anthrazit, Schaub und Schaub-Lorenz", title: "Schaub und Schaub- Tiny S 150469 anthrazit from Peter Seifert (1)", ite: "1"} {gbW: "373", gbH: "425", mW: "329.0", mH: "375", kb: "41 KB", notes: "For model Tiny S 150469 anthrazit, Schaub und Schaub-Lorenz:[br]Q: Service Unterlagen", title: "Schaub und Schaub- Tiny S 150469 anthrazit uploaded by Arpad Roth † 27.3.17 (2)", ite: "2"} {gbW: "933", gbH: "699", mW: "500", mH: "375", kb: "85 KB", notes: "For model Tiny S 150469 anthrazit, Schaub und Schaub-Lorenz:[br]Skalenansicht, UKW-Bereich bis 104 MHz", title: "Schaub und Schaub- Tiny S 150469 anthrazit from Sieghart Brodka † 24.2.17 (1)", ite: "1"} {gbW: "360", gbH: "480", mW: "281.0", mH: "375", kb: "89 KB", notes: "For model Tiny S 150469 anthrazit, Schaub und Schaub-Lorenz", title: "Schaub und Schaub- Tiny S 150469 anthrazit from Wolfgang Lohrie (1)", ite: "1"} {gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "101 KB", notes: "For model Tiny S 150469 anthrazit, Schaub und Schaub-Lorenz", title: "Schaub und Schaub- Tiny S 150469 anthrazit from Wolfgang Lohrie (1)", ite: "1"}

Tiny S 150469 anthrazit; Schaub und Schaub- (ID = 2428231) Radio

Tiny S 150469 anthrazit; Schaub und Schaub- (ID = 149545) Radio

Tiny S 150469 anthrazit; Schaub und Schaub- (ID = 64612) Radio

Tiny S 150469 anthrazit; Schaub und Schaub- (ID = 299366) Radio

Tiny S 150469 anthrazit; Schaub und Schaub- (ID = 149544) Radio

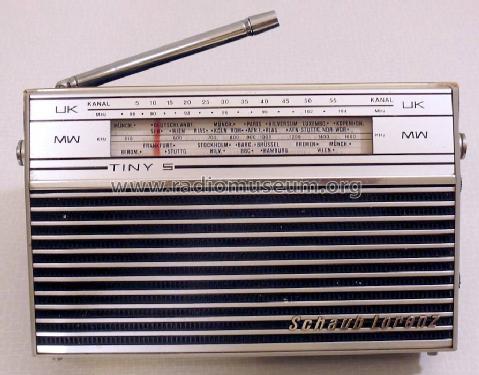

Tiny S 150469 anthrazit; Schaub und Schaub- (ID = 299365) Radio

Tiny S 150469 anthrazit; Schaub und Schaub- (ID = 49929) Radio

Tiny S 150469 anthrazit; Schaub und Schaub- (ID = 149546) Radio

Tiny S 150469 anthrazit; Schaub und Schaub- (ID = 677961) Radio

Tiny S 150469 anthrazit; Schaub und Schaub- (ID = 677962) Radio

Next pictures

Use red slider bar for more.

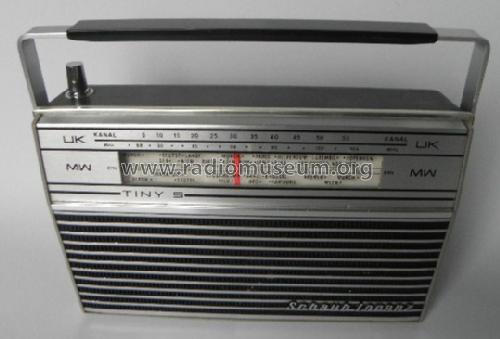

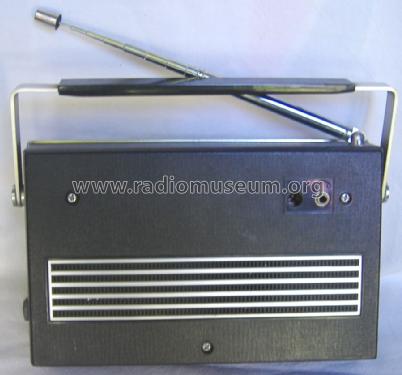

Schaub und Schaub-: Tiny S 150469 anthrazit [Radio] ID = 2428231 1400x1050

Select picture or schematic to display from thumbnails on the right and click for download.

For model Tiny S 150469 anthrazit, Schaub und Schaub-Lorenz

Country:

Germany

Manufacturer / Brand:

Schaub und Schaub-Lorenz

Year: 1967/1968

Category: Broadcast Receiver - or past WW2 Tuner

Semiconductors (the count is only for transistors)

9: 2SA235 2SA235 2SA350 2SA234 2SA234 2SB75 2SB75 2SB156 2SB156

Main principle	Superheterodyne (common); ZF/IF 458/10700 kHz
Tuned circuits	5 AM circuit(s) 8 FM circuit(s)
Wave bands	Broadcast (BC) and FM or UHF.
Details
Power type and voltage	Dry Batteries / 4 × 1,5 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out	0.36 W (unknown quality)
from Radiomuseum.org	Model: Tiny S 150469 anthrazit - Schaub und Schaub-Lorenz
Material	Plastics (no bakelite or catalin)
Shape	Portable set > 8 inch (also usable without mains)
Dimensions (WHD)	190 x 115 x 55 mm / 7.5 x 4.5 x 2.2 inch
Notes	Netzbetrieb mit zusätzlichem Netzteil möglich.
Net weight (2.2 lb = 1 kg)	0.9 kg / 1 lb 15.7 oz (1.982 lb)
Source of data	Handbuch VDRG 1967/1968 / Radiokatalog Band 1, Ernst Erb

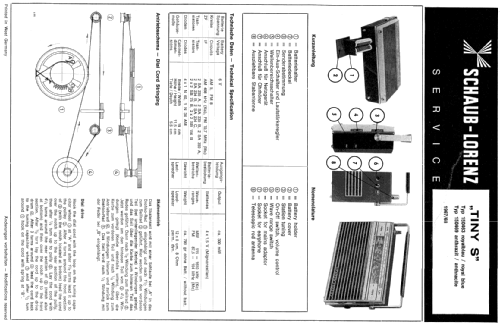

Literature/Schematics (1)	-- Original-techn. papers.
