• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1967/1968

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 5914

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• AC122 AC122 AC122 AC122 AC125 AC125 AD152 AD155 AD155 BF131 BF131 BF131 BF131

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 5×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

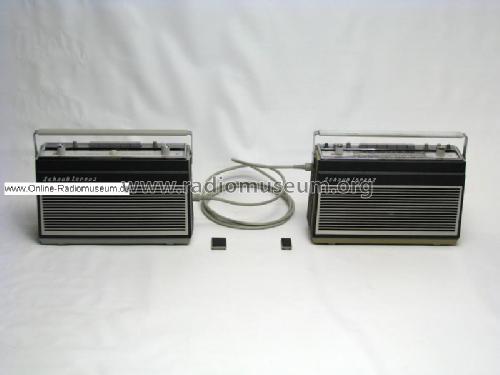

• Model: Touring-Stereo-Component 932709 [anthrazit] - Schaub und Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 190 x 95 mm / 11.8 x 7.5 x 3.7 inch

• Notes
• Zusatzgerät mit eingebautem Stereo-Decoder für Stereo-Wiedergabe in Verbindung mit Touring 80 Universal.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Source of data
• Handbuch VDRG 1967/1968 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
