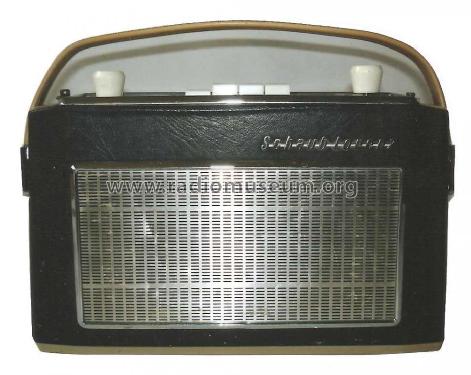

Weekend T50L Automatik; Schaub und Schaub- (ID = 720481) Radio
Schaub und Schaub-: Weekend T50L Automatik [Radio] ID = 720481 933x742
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weekend T50L Automatik, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF125 AF126 AF126 AC125 AC125 AC128 AC128
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Weekend T50L Automatik - Schaub und Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 175 x 80 mm / 10.6 x 6.9 x 3.1 inch
Notes Betrieb im Auto über Autohalterung (44,- DM) aus 6-V- oder 12-V-Autobatterie möglich.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Price in first year of sale 362.00 DM
Source of data Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb
