Weltsuper WS52U

Weltsuper WS52U; Schaub und Schaub- (ID = 1722027) Radio

Weltsuper WS52U; Schaub und Schaub- (ID = 1722028) Radio

Weltsuper WS52U; Schaub und Schaub- (ID = 1722029) Radio

Weltsuper WS52U; Schaub und Schaub- (ID = 1722030) Radio

Weltsuper WS52U; Schaub und Schaub- (ID = 1722031) Radio

Weltsuper WS52U; Schaub und Schaub- (ID = 1722032) Radio
Weltsuper WS52U; Schaub und Schaub- (ID = 1720418) Radio Weltsuper WS52U; Schaub und Schaub- (ID = 91493) Radio
Weltsuper WS52U; Schaub und Schaub- (ID = 304699) Radio Weltsuper WS52U; Schaub und Schaub- (ID = 304700) Radio
Weltsuper WS52U; Schaub und Schaub- (ID = 1720419) Radio Weltsuper WS52U; Schaub und Schaub- (ID = 1720420) Radio
Use red slider bar for more.
Weltsuper WS52U; Schaub und Schaub- (ID = 1720418) Radio
Schaub und Schaub-: Weltsuper WS52U [Radio] ID = 1720418 933x712
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltsuper WS52U, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECH42 EF43 EF42 EB41 EM71 ECH42 EAF42 EAF42 EL41 AZ11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: Weltsuper WS52U - Schaub und Schaub-Lorenz
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 394 x 260 mm / 23.6 x 15.5 x 10.2 inch
Notes

LW, 2× MW, 2× KW und UKW (86 - ca 100 MHz)

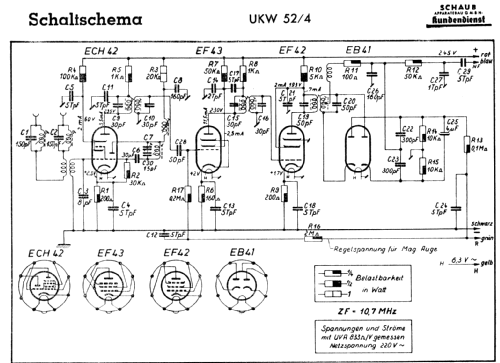

Das Gerät WS52U besteht aus dem Schaub Super WS 52 mit dem UKW-Einbaugerät UKW 52/4

Net weight (2.2 lb = 1 kg) 14.4 kg / 31 lb 11.5 oz (31.718 lb)
Price in first year of sale 475.00 DM
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch (??)
Mentioned in Funkschau (5016)
