• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21756

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM84 EABC80 ECL82 ECL82

• Number of Transistors

• Semiconductors
• B250C100

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 155; 220 Volt

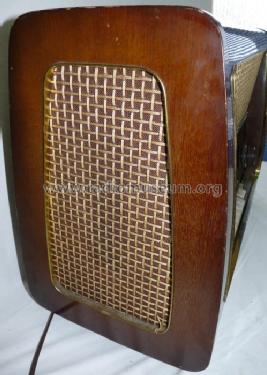

• Loudspeaker

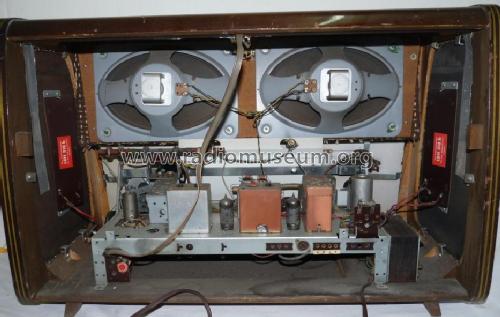

• 4 Loudspeakers

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

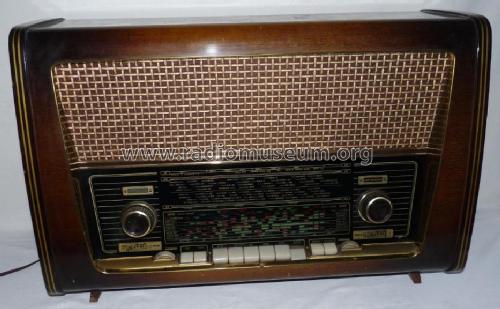

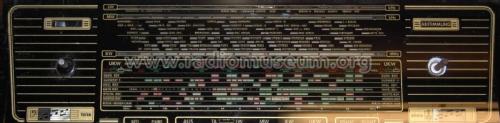

• Model: Westminster 59 24010 - Schaub und Schaub-Lorenz

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 640 x 420 x 275 mm / 25.2 x 16.5 x 10.8 inch

• Notes

• UKW-Band bis 100,3 MHz. Gegentakt-Endstufe. Variable Bandbreite.

  Das Gerät wurde in der Völkner Sonderliste IV/59 zum Aktionspreis von 299.- DM angeboten.

• Net weight (2.2 lb = 1 kg)
• 12.6 kg / 27 lb 12.1 oz (27.753 lb)

• Price in first year of sale
• 399.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Mentioned in
• -- Original-techn. papers.
