Z42KM

Z42KM; Schaub und Schaub- (ID = 571207) Radio Z42KM; Schaub und Schaub- (ID = 571208) Radio
Z42KM; Schaub und Schaub- (ID = 571209) Radio
Use red slider bar for more.
Z42KM; Schaub und Schaub- (ID = 571207) Radio

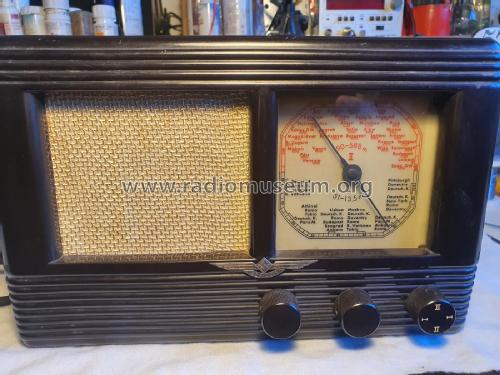

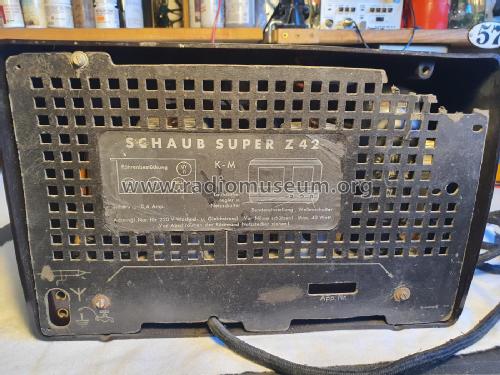

Schaub und Schaub-: Z42KM [Radio] ID = 571207 400x281
Select picture or schematic to display from thumbnails on the right and click for download.
For model Z42KM, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1942–1944 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes UCH11 UBF11 UCL11 UY11
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Z42KM - Schaub und Schaub-Lorenz
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 275 x 180 x 155 mm / 10.8 x 7.1 x 6.1 inch
Notes Chassis enspricht Tefag K5A und Lorenz K10A
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)

Model page created by Martin Steyer. See "Data change" for further contributors.
