• Year
  • 1948/1949
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 6073

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110-230 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Bakelite case
  • from Radiomuseum.org

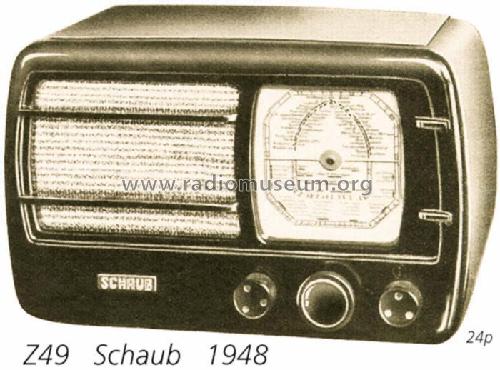

  • Model: Z49U11 - Schaub und Schaub-Lorenz
  • Dimensions (WHD)
  • 280 x 180 x 150 mm / 11 x 7.1 x 5.9 inch
  • Source of data
  • Radiokatalog Band 1, Ernst Erb
  • Circuit diagram reference
  • Hermann Rottmann und Fred P. Langheinrich hatten mir dieses Gerät erstmals bekannt gemacht. Sie verfügen jedoch nicht über Schaltungen darüber oder weitere Informationen, sondern haben mir bei der Recherche geholfen. Danke.
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
