Atout 3V

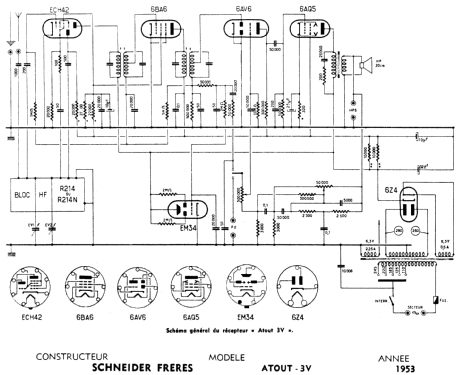

Atout 3V; Schneider Frères, (ID = 514274) Radio

Atout 3V; Schneider Frères, (ID = 1601676) Radio

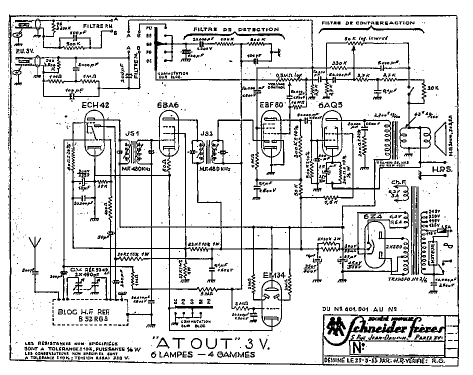

Atout 3V; Schneider Frères, (ID = 1601682) Radio
Atout 3V; Schneider Frères, (ID = 1766103) Radio Atout 3V; Schneider Frères, (ID = 1766104) Radio
Atout 3V; Schneider Frères, (ID = 1766105) Radio Atout 3V; Schneider Frères, (ID = 1766107) Radio

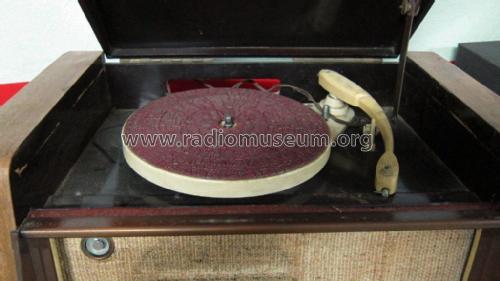

Atout 3V; Schneider Frères, (ID = 2031424) Radio Atout 3V; Schneider Frères, (ID = 2031425) Radio
Atout 3V; Schneider Frères, (ID = 2031426) Radio
Use red slider bar for more.
Atout 3V; Schneider Frères, (ID = 1766103) Radio
Schneider Frères,: Atout 3V [Radio] ID = 1766103 1280x960
Select picture or schematic to display from thumbnails on the right and click for download.
For model Atout 3V, Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine

Country:  France
Manufacturer / Brand:  Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 6BA6 6AV6 6AQ5 EM34 6Z4
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Atout 3V - Schneider Frères, Radio-
Material Wooden case
Shape Tablemodel, low profile (big size).
External source of data Serge Laffont/Martin Renoth


All listed radios etc. from Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
Here you find 248 models, 204 with images and 128 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
