Orchestra 58; Schneider Frères, (ID = 318766) Radio

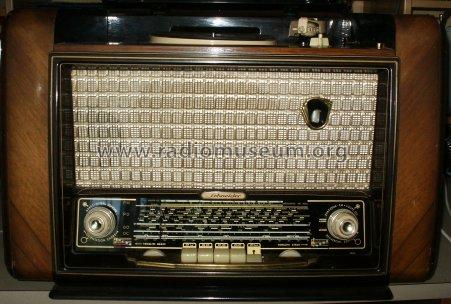

Schneider Frères,: Orchestra 58 [Radio] ID = 318766 451x304
Select picture or schematic to display from thumbnails on the right and click for download.
For model Orchestra 58, Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine

Country:  France
Manufacturer / Brand:  Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 EF89 ECH81 EB91 EM81 EBF89 6AU6 EL84 EZ80
Main principle Superhet with RF-stage; ZF/IF 480/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
Loudspeaker 3 Loudspeakers / Ø 24 cm = 9.4 inch
Power out
from Radiomuseum.org Model: Orchestra 58 - Schneider Frères, Radio-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 590 x 395 x 365 mm / 23.2 x 15.6 x 14.4 inch
Notes

The model Orchestra 58 has a shielded drum antenna - the same chassis as Symphonie.

Dial lamps: 2x 7V/0,3A.

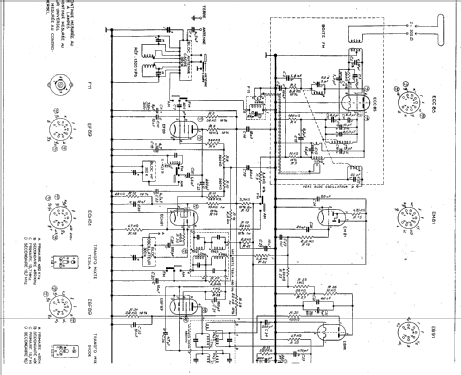

Source of data -- Schematic

Model page created by Claude Weeber † 27.5.2010. See "Data change" for further contributors.
