- Country
- France
- Manufacturer / Brand
- Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 126701
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 245 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sabrina D28 - Schneider Frères, Radio-
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 660 x 790 x 320 mm / 26 x 31.1 x 12.6 inch
- Notes
-
Model similar to Marella D27

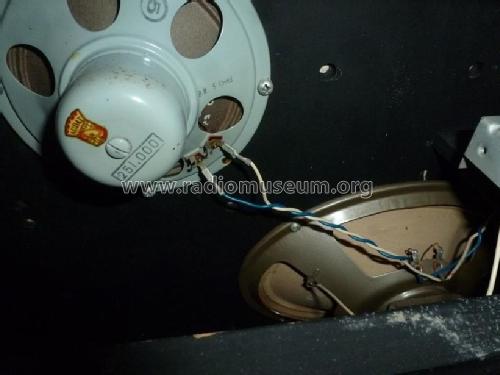

Radio fixed in a metal stand, speakers 16 x 24 cm & 12 cm.
- Net weight (2.2 lb = 1 kg)
- 14.5 kg / 31 lb 15 oz (31.938 lb)
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by a member from A. See "Data change" for further contributors.
- Other Models
-
Here you find 263 models, 216 with images and 134 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
Museums
The model Sabrina can be seen in the following museums.
