Silvertone 7152

Silvertone 7152 ; Sears, Roebuck & Co. (ID = 1334809) Radio

Silvertone 7152 ; Sears, Roebuck & Co. (ID = 1334810) Radio

Silvertone 7152 ; Sears, Roebuck & Co. (ID = 666976) Radio

Silvertone 7152 ; Sears, Roebuck & Co. (ID = 666978) Radio

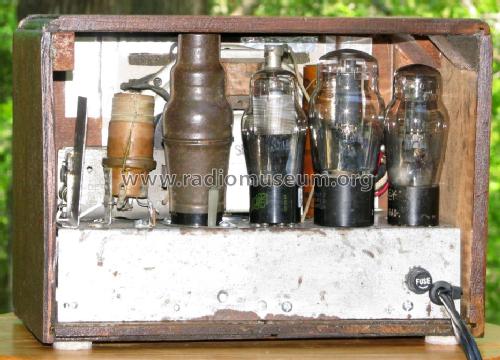

Silvertone 7152 ; Sears, Roebuck & Co. (ID = 1402633) Radio Silvertone 7152 ; Sears, Roebuck & Co. (ID = 1402634) Radio
Silvertone 7152 ; Sears, Roebuck & Co. (ID = 1402635) Radio
Use red slider bar for more.
Silvertone 7152 ; Sears, Roebuck & Co. (ID = 1402633) Radio
Sears, Roebuck & Co.: Silvertone 7152 [Radio] ID = 1402633 933x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Silvertone 7152, Sears, Roebuck & Co.; Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 78 77 43 25Z5
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / Either DC 105 to 125V or AC 25 to 60 cycles, 105 to 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Silvertone 7152 - Sears, Roebuck & Co.; Chicago
Notes

The Sears Silvertone 7152 is an AC/DC operated 4 tube BC band receiver.

Uses 175 ohm resistive line cord (Curtain burner).  Chassis is similar to Echophone model 128, see Riders schematic for changes.

See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Corona Radio and Television Corp., Chicago, Ill (Sears Manufacturer Source Number Code 104).

External source of data Ernst Erb

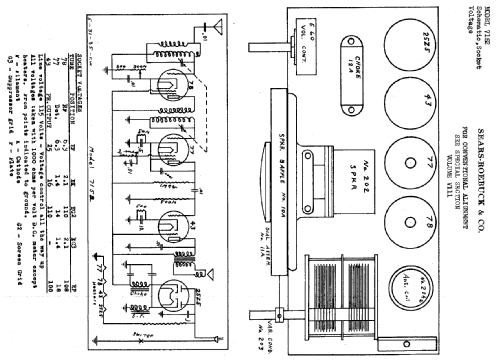

Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Literature/Schematics (1) Rider's Perpetual, Volume 7 = 1936 and before (Riders 7-67 ; 10-92)
Literature/Schematics (2) Silvertone Radios, Service Inf. 1928 thru 1936 (Pages 930 to 931)


All listed radios etc. from Sears, Roebuck & Co.; Chicago (IL)
Here you find 5390 models, 3120 with images and 4100 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
