44; Seibt, Dr. Georg (ID = 1267298) Radio

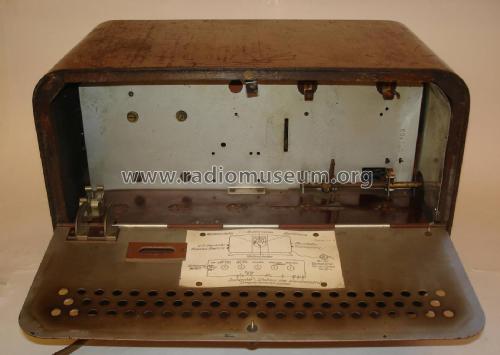

Seibt, Dr. Georg: 44 [Radio] ID = 1267298 900x761
Select picture or schematic to display from thumbnails on the right and click for download.
For model 44, Seibt, Dr. Georg (Nachf.); Berlin, auch München

Country:  Germany
Manufacturer / Brand:  Seibt, Dr. Georg (Nachf.); Berlin, auch München
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: RENS1204 RENS1204 REN904 RE304 or RES374 RGN1054
schematic requested
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 Special; 2 AF stage(s); something special ? Please give information (notes)
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker
Power out
from Radiomuseum.org Model: 44 - Seibt, Dr. Georg Nachf.;
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
