- Country
- United States of America (USA)
- Manufacturer / Brand
- Setchell Carlson, Inc.; St.Paul (MN)
- Year
- 1950 ??
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 132647
-
- Brand: Doraphone

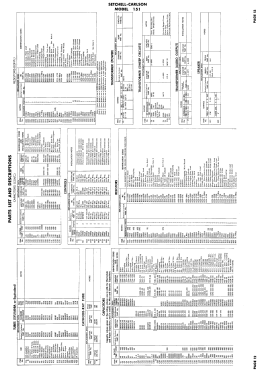

picture from service manual.
PhotoFact Folder
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 26
- Valves / Tubes
- 6CB6 or 6AG5 6J6 6AU6 6AU6 6AU6 6AU6 6AU6 6K6GT 6AU6 6AU6 6AL5 6AU6 6V6GT 12BH7 6C4 6V6GT 6AL5 12BH7 6BQ6GT 6W4GT 1X2A 5U4G 6BA6 6BE6 6BA6 17BP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 151-A17 - Setchell Carlson, Inc.; St.
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
Setchell-Carlson model 151-A-17 is a 17” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a TV-AM combination receiver, VHF tuner TV-276 and picture tube 17BP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 155, folder 15, dated 1-52)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
