For model 561 Ch= 156-RP, Setchell Carlson, Inc.; St.Paul (MN):

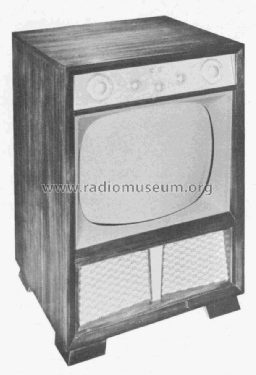

Picture from service manual.
SAMS Photofact shows quite a number of chassis which share the same picture. We believe that the models don't look the same and should have individual pictures, but we have no proof for this. Please send us pictures if you have such a TV by using the contact form on bottom of this page.

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1955 ? Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 28: 6BQ7A 6AT8 6BA6 6BA6 6AU6 6AM8 6AU6 6AU8 6AQ5 6AU6 6AU6 6AL5 12AX7 6AQ5 6AQ5 6BE6 12AU7 6V6GT 6AL5 12AU7 6CU6 6AX4GT 1B3GT 6BA6 6BE6 6AM8 5U4GB 21ATP4
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
Loudspeaker 2 Loudspeakers / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 561 Ch= 156-RP - Setchell Carlson, Inc.; St.
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

Setchell-Carlson model 561 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 156-RP, VHF tuner TD-30, AM receiver , record player and picture tube 21ATP4.





Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 320 Folder 13 dated 6-56)

Model page created by Dirk Taekels. See "Data change" for further contributors.
