• Year
  • 1955 ?
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 302166
    • Brand: Doraphone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 28
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 563 Ch= 156-RP - Setchell Carlson, Inc.; St.
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

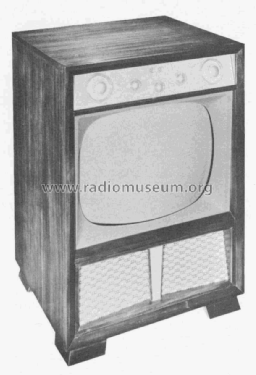

  • Setchell-Carlson model 563 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 156-RP, VHF tuner TD-30, AM receiver , record player and picture tube 21ATP4.





  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
