588

588 ; Setchell Carlson, (ID = 449279) Radio
588 ; Setchell Carlson, (ID = 1106271) Radio 588 ; Setchell Carlson, (ID = 1106270) Radio

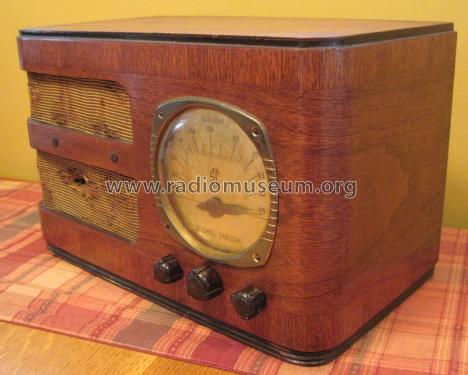

588 ; Setchell Carlson, (ID = 1106272) Radio 588 ; Setchell Carlson, (ID = 1106273) Radio
588 ; Setchell Carlson, (ID = 1106281) Radio
Use red slider bar for more.
588 ; Setchell Carlson, (ID = 1106271) Radio
Setchell Carlson,: 588 [Radio] ID = 1106271 933x788
Select picture or schematic to display from thumbnails on the right and click for download.
For model 588, Setchell Carlson, Inc.; St.Paul (MN)

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8 6K7 6Q7 6K6 6X5
Main principle Superheterodyne (common); ZF/IF 456 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 588 - Setchell Carlson, Inc.; St.
Material Wooden case
Shape Tablemodel, with any shape - general.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
