RA50

RA50 ; Setchell Carlson, (ID = 449300) Radio
Use red slider bar for more.
RA50 ; Setchell Carlson, (ID = 449300) Radio

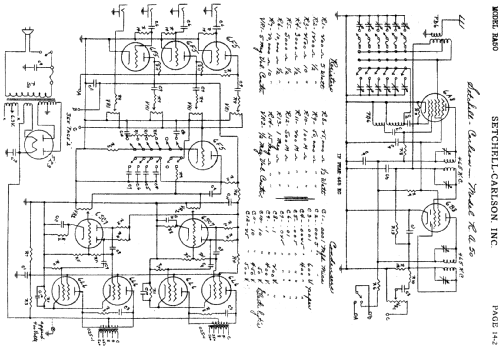

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1942 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: 6A8 6B8 6F5 6F5 6F5 6F5 6SC7 6SC7 6L6 6L6 6L6 6L6 5Z3
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 6 AM circuit(s)
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: RA50 - Setchell Carlson, Inc.; St.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 14 = 1944 = before 1943
