Radio Dor-A-Fone

Radio Dor-A-Fone ; Setchell Carlson, (ID = 2429895) Radio Radio Dor-A-Fone ; Setchell Carlson, (ID = 2430349) Radio
Radio Dor-A-Fone ; Setchell Carlson, (ID = 2430350) Radio Radio Dor-A-Fone ; Setchell Carlson, (ID = 2430352) Radio
Radio Dor-A-Fone ; Setchell Carlson, (ID = 2430353) Radio
Use red slider bar for more.

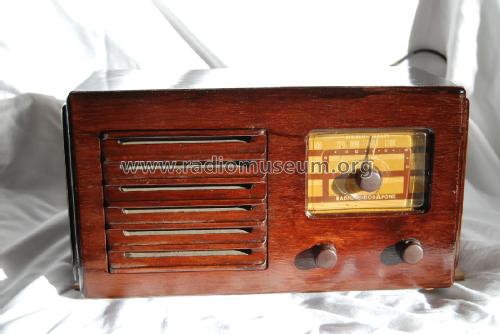

Radio Dor-A-Fone ; Setchell Carlson, (ID = 2429895) Radio
Setchell Carlson,: Radio Dor-A-Fone [Radio] ID = 2429895 1400x937
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio Dor-A-Fone, Setchell Carlson, Inc.; St.Paul (MN):
Original condition except a new coat of polyurethane

Country:  United States of America (USA)
Manufacturer / Brand:  Setchell Carlson, Inc.; St.Paul (MN)
Brand

Doraphone
Year: 1948 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12K7 12A8 12K7 12SQ7 35L6 35Z5
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4.5 inch = 11.4 cm
Power out 1 W (2 W max.)
from Radiomuseum.org Model: Radio Dor-A-Fone - Setchell Carlson, Inc.; St.
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 11.5 x 5 x 6 inch / 292 x 127 x 152 mm
Notes

This model looks similar to model 421RD, but this radio has 6 tubes instead of 5 and there is no intercom and intercom lever switch. There is only a two-position tone control on the volume control, and a station selector control.

Net weight (2.2 lb = 1 kg) 5 lb 12 oz (5.75 lb) / 2.611 kg

Model page created by Michael Saija. See "Data change" for further contributors.
