Amplificateur Quatre Éléments 1344 E2

Amplificateur Quatre Éléments 1344 E2; Radiola marque (ID = 1452487) mod-pre26 Amplificateur Quatre Éléments 1344 E2; Radiola marque (ID = 1452486) mod-pre26
Amplificateur Quatre Éléments 1344 E2; Radiola marque (ID = 1452488) mod-pre26
Use red slider bar for more.
Amplificateur Quatre Éléments 1344 E2; Radiola marque (ID = 1452487) mod-pre26

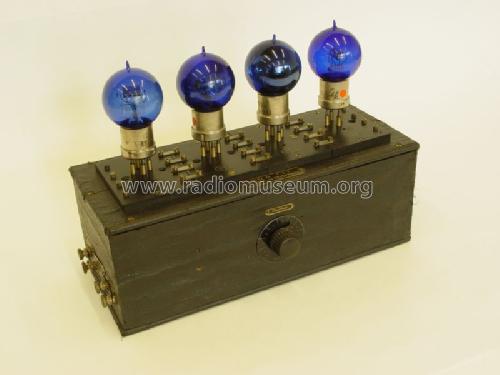

Radiola marque: Amplificateur Quatre Éléments 1344 E2 [mod-pre26] ID = 1452487 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplificateur Quatre Éléments 1344 E2, Radiola (marque):
Collection privée (Réf.: 2009)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1923 Category: Radio module pre 1926 (not a part, not a key)
Valves / Tubes 4:
Main principle Detector with Vacuum Tube (Valve), no tuner
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Amplificateur Quatre Éléments 1344 E2 - Radiola marque
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 330 x 230 x 160 mm / 13 x 9.1 x 6.3 inch
Notes

Malgré le nom "amplificateur", ce modèle est ni ampli BF, ni ampli HF seulement.

Il y a un étage HF apériodique suivi par une lampe détectrice, elle-même suivie par deux étages BF. Il n'y a pas d'étage syntonisateur mais bien une sortie feedback pour établir un circuit réaction avec un syntonisateur Radiolina N°2, formant ainsi un poste récepteur complet.

Explication des chiffres dans le numéro type:

  • "1" = lampe amplificatrice HF
  • "3" = lampe détectrice
  • "4" = lampe amplificatrice BF

D'autres combinaisons de chiffres sont possibles: regardez l'explication en bas de cette page ou avec le modèle identique vendu par SBR en Belgique.


Although named "amplifier" it is neither simply RF nor AF only.

There is an RF staged followed by an (Audion) Detector and 2 stages AF. There is no tuning feature, but there is a feedback output to form a reaction loop when a Radiolina_N°2 is connected, that way forming a complete receiver.

Explanation of the digits in the type number:

  • "1" = RF amplifier tube
  • "3" = detection tube
  • "4" = LF amplifier tube

Others combinations of digits are possible: see explanation below this page or with an identical model which was commercialised by SBR in Belgium.

Mentioned in Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (Biraud II, p333, fi1375)
Literature/Schematics (1) TSF Antique 1921 à 1927 (p.148)

Model page created by Christophe Howald. See "Data change" for further contributors.



All listed radios etc. from Radiola (marque)
Here you find 812 models, 499 with images and 232 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Radiola marque: Amplificateur Quatre Éléments 1344 E2
Threads: 1 | Posts: 1
Hits: 1038     Replies: 0
sfrradiola: so called 'Amplificateurs'
Konrad Birkner † 12.08.2014
21.Jun.13
  1

With the exception of 44 which is a 2 step audio amplifier the other instruments are different. Although named "amplifier" they can neither simply amplify RF nor AF only. There is an audion detector and several combinations with RF stage and AF stage(s). There is no tuning feature, but there is a feedback output to enable reaction if connected with a Radiolina No.2 (the tuner).
Connected with said Radiolina No.2 (or any other front end tuner) a complete receiver is formed.

Amplificateur Deux Elements (2 tubes):
   34     Detector + 1 stage AF
or  44    2 stage AF (to be combined with Radiolina No.1 where the Detector is already included)

Amplificateur Trois Elements (3 tubes):
  134   1 stage RF + Detector + 1 stage AF
or 344   Detector + 2 stages AF

Amplificateur Quatre Elements (4 tubes):
-  1344  1 stage RF + Detector + 2 stages AF


Radiola marque: Amplificateur Quatre Éléments 1344 E2
