RA12A /29; Radiola marque (ID = 1767796) Radio
Radiola marque: RA12A /29 [Radio] ID = 1767796 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA12A /29, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: EK2 EF9 EBL1 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz; 1 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: RA12A /29 - Radiola marque
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 300 x 220 mm / 19.3 x 11.8 x 8.7 inch
Notes

Voir aussi modèle RA12A.

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)

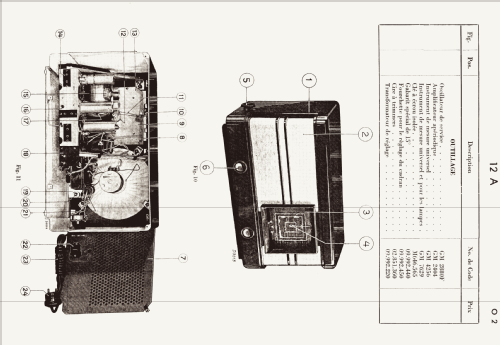

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Manfred Rathgeb. See "Data change" for further contributors.
