• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1972 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 125332

• • alternative name: Hayakawa Electric Co.Ltd.

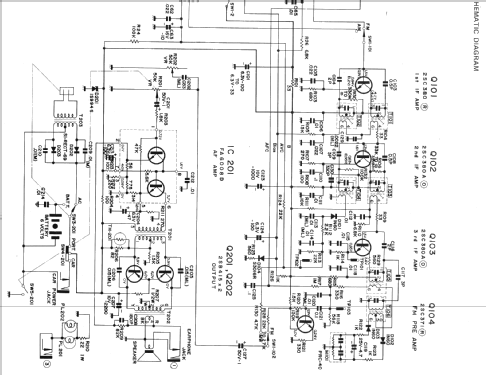

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SC784 2SC394 2SC380 2SC380 2SC380 2SC380 2SC371 2SB415 2SB415 FA6008T 1S85 1N60

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / C: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: FX-200V - Sharp; Osaka

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 232 x 150 x 61 mm / 9.1 x 5.9 x 2.4 inch

• Notes

• 1 IC. AFC. Anschluß für Autohalterung PN-99 für 12 Volt.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Mentioned in
• Funkschau (5/1972, Werbeanzeige)

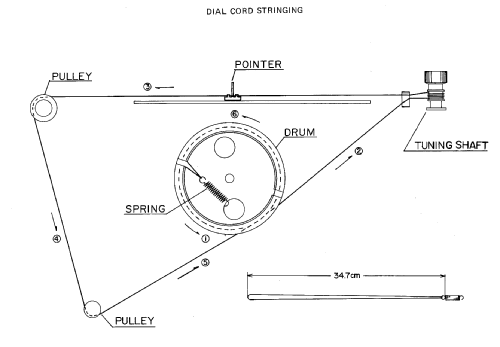

• Literature/Schematics (1)
• -- Original-techn. papers. (Original Sharp Service Unterlagen)

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
