PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103

Degen 深圳市德劲电子有限公司 Electronics Co. Ltd.; Shenzhen

Data

Forum

Pictures

Collections

Country
People's Republic of China

Manufacturer / Brand
Degen 深圳市德劲电子有限公司 Electronics Co. Ltd.; Shenzhen

Year
2004

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
176911

Schematics

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 1838785) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 1838786) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 1838804) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 1838833) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663617) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663618) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663619) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663620) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663621) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663622) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663623) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663624) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663625) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663626) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663627) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663628) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663629) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663630) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663631) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663632) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663633) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663634) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2663635) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (3)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 1904293) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2692667) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (2)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 781944) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 781945) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 781946) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 781950) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 792790) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 792791) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 792792) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 792793) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 792794) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 792795) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 792796) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 792797) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 841407) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (2)
VTH Verlagsprogramm 2011, Seite 63

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 1838692) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (2)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 1838817) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (2)
http://radio.pagesperso-orange.fr

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 1838818) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (2)
http://radio.pagesperso-orange.fr

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 1838819) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (2)
http://radio.pagesperso-orange.fr

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 1838820) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (2)
http://radio.pagesperso-orange.fr

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 2783689) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 3019753) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 3019754) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 3019755) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 3019756) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103; Degen 深圳市德劲电子有限公司 (ID = 3019757) Radio — Degen 深圳市德劲电子有限公司 PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superhet, double/triple conversion; ZF/IF 55.845/450 kHz

Wave bands
Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

Power type and voltage
Storage and/or dry batteries / 4 x 1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103 - Degen 深圳市德劲电子有限公司 Electronics

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
165 x 105 x 29 mm / 6.5 x 4.1 x 1.1 inch

Notes

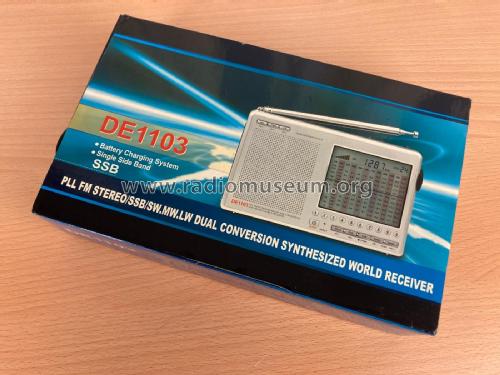

The DEGEN DE1103 originally released in 2004 shows "PLL FM STEREO/SW.MW.LW DUAL CONVERSION SYNTHESIZED WORLD RECEIVER" at the front panel, being a analog receiver with PLL for more precise tuning with a digital frequency entry and display.

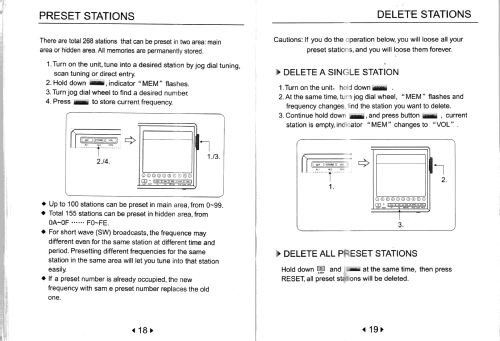

It features a clock and timer functions, different scanning modes and 255 memory presets.

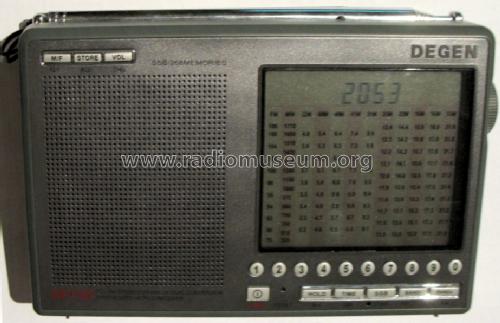

This model features an analog like RF band dial where the pointer is simulated by the LCD panel showing a moving horizontal line. A digital display is used to get precision numbers when tuning.

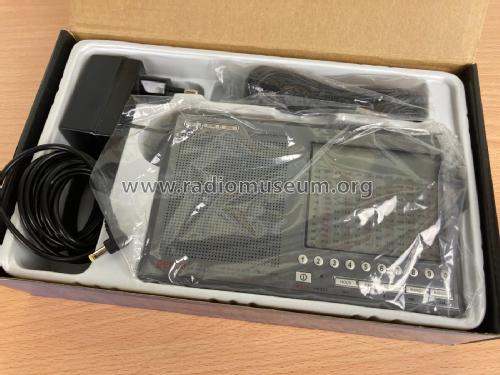

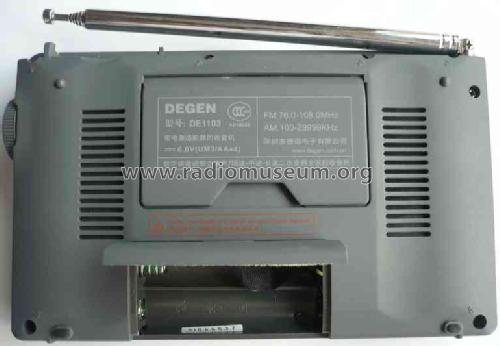

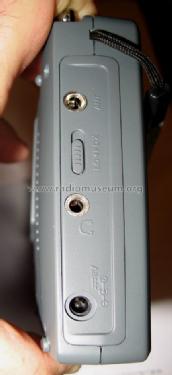

The model may either use AA dry batteries, or NiMH rechargeable batteries. The included AC adapter can be used to power the radio instead of consuming energy from the installed batteries.
- If NiMH rechargeable batteries are installed, then the AC adapter can also be used to charge them by manually enabling the charging function.
Frequency range
- FM Frequency: 76.0 - 108.0 MHz, step 25 kHz.
- AM Frequency: SW, MW, LW 100 - 29999 kHz, step 1 kHz.
  - CW / SSB reception with BFO
Sensitivity
- FM: <10 µV
- MW: <1 mV/m
- SW: <20 µV
AM Selectivity
- Wide mode (6 kHz): >40 dB
- Narrow mode (4 kHz): >50 dB

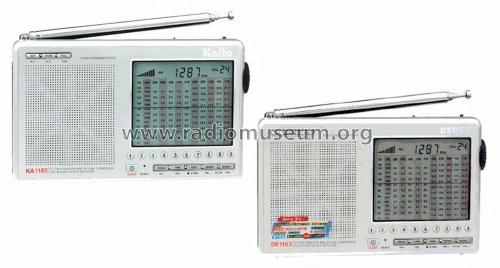

Was also sold as Kaito KA-1103.

In 2015 a new DE1103 model version based on DSP was released, aka DE1103 DSP, or DE1103 V2. The new 2015 version is totally distinct inside, despite retaining the same external looking, but it shows "DE1103 FM STEREO/SW.MW.LW DIGITAL WORLD RECEIVER" at the front panel.

Net weight (2.2 lb = 1 kg)
0.480 kg / 1 lb 0.9 oz (1.057 lb)

Literature/Schematics (1)
- - Manufacturers Literature

Other Models
Here you find 11 models, 11 with images and 7 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Degen 深圳市德劲电子有限公司 Electronics Co. Ltd.; Shenzhen

Collections | Museums | Literature

Collections

The model PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver is part of the collections of the following members.

Forum

Forum contributions about this model: Degen 深圳市德劲电子有限公司: PLL FM Stereo/SW MW LW Dual Conversion Synthesized World Receiver DE-1103

Threads: 1 | Posts: 5

Hallo Forum,

nachdem mein erstes (in Deutschland gekauftes) DE 1103 vor Jahren seinen Dienst eingestellt hat, kaufte ich mir (diesmal in China) ein neues. Aus bekannten Gründen kam es auf Reisen nicht mehr zum Einsatz. Erst jetzt stelle ich fest, dass es sich in 2 Punkten von meinem ursprünglichen Gerät unterscheidet:

- Der AM-Bereich beginnt erst bei 150KHz, Abstimmung darunter ist nicht möglich.

- Ein kontinuierliche Abstimmung über die Bandgrenzen hinaus ist nur möglich, wenn man über die Tastatur eine Frequenz außerhalb der vorgegebenen Bandsegmente eingibt. Von dort ausgehend kann man sich dann zwischen die Bandgrenzen begeben, also z.B. Amateurfunk hören. Überschreitet man dabei eine Bandgrenze, kann man den Bereich dann wieder nur auf die beschriebene Weise verlassen.

Könnte es sein, dass verschiedene Varianten des Gerätes (möglicherweise für unterschiedlich Märkte) existieren? Vielleicht können andere Besitzer dieses Gerätes mal nachsehen, wie sich ihr Exemplar verhält.

Grüße

J. Glüder

Joachim Glüder, 10.Nov.20

Weitere Posts (5) zu diesem Thema.
