Moving Magnet Pick Up V-15

Moving Magnet Pick Up V-15; Shure; Chicago, (ID = 1712203) Microphone/PU Moving Magnet Pick Up V-15; Shure; Chicago, (ID = 1712205) Microphone/PU
Moving Magnet Pick Up V-15; Shure; Chicago, (ID = 1712206) Microphone/PU Moving Magnet Pick Up V-15; Shure; Chicago, (ID = 1712207) Microphone/PU
Moving Magnet Pick Up V-15; Shure; Chicago, (ID = 1712208) Microphone/PU Moving Magnet Pick Up V-15; Shure; Chicago, (ID = 1711815) Microphone/PU
Moving Magnet Pick Up V-15; Shure; Chicago, (ID = 1807016) Microphone/PU Moving Magnet Pick Up V-15; Shure; Chicago, (ID = 1807021) Microphone/PU
Moving Magnet Pick Up V-15; Shure; Chicago, (ID = 1807063) Microphone/PU Moving Magnet Pick Up V-15; Shure; Chicago, (ID = 1807085) Microphone/PU
Use red slider bar for more.
Moving Magnet Pick Up V-15; Shure; Chicago, (ID = 1712203) Microphone/PU

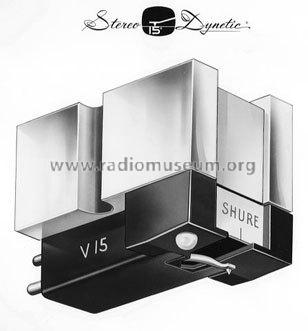

Shure; Chicago,: Moving Magnet Pick Up V-15 [Microphone/PU] ID = 1712203 308x331
Select picture or schematic to display from thumbnails on the right and click for download.
For model Moving Magnet Pick Up V-15, Shure; Chicago, Evanston, Niles (IL):
Bild aus ..shure.de/unternehmen/shure_geschichte#60er

Country:  United States of America (USA)
Manufacturer / Brand:  Shure; Chicago, Evanston, Niles (IL)
Year: 1964–2004 Category: Microphone or Pick-up element
Wave bands - without
Details
Loudspeaker
Power out
from Radiomuseum.org Model: Moving Magnet Pick Up V-15 - Shure; Chicago, Evanston,
Material Bakelite case
Shape Miscellaneous shapes - described under notes.
Notes

Der magnetische Tonabnehmer Shure V-15 ist das wohl beste magnetische (moving magnet) System, das Shure in seiner Geschichte gebaut hat und es ist mit einer Bauzeit von 40 Jahren einer der längst-gebauten HiFi-Komponenten überhaupt. Einer der wichtigsten Innovationen war 1964 die Einführung des elliptischen Schliffes der Abtastnadel. In den 40 Jahren der Bauzeit wurde das Modell mehrfach überarbeitet und verbessert, größere Entwicklungssprünge sind mit römischen Ziffern gekennzeichnet. Das erste Modell aus deutscher Fertigung mit Shure V-15 war der Plattenspieler Braun PCS 52 (Tonarm Shure SME 3009, Hersteller SME) und Dual 1967 in seinem Spitzenmodell 1019/T573 + 574.

1964  V15 Stereo Dynetic Hi-Fi Phonograph Cartridge:  |  Preis: 360 DM bzw. 87,50 $
Stylus: VN 2-E
15 degree vertical tracking angle
Symmetrical bi-radial elliptical stylus (.0002" x .0009")

1966 V15 Type II:    Preis 94 $
stylus VN 15-E
Introduced “Trackability”: ability to maintain contact between  stylus and record groove at minimum
tracking force

1970 V15 Type II Improved
Upgraded stylus
Flatter frequency response

1973 V15 Type III
stylus: VN 35-E
New laminated pole piece
Uniformly flat, unaccented, uncolored frequency response
25% reduction of effective stylus mass

1978 V15 Type IV
stylus: VN 45-HE
Hyperelliptical nude stylus tip resulting in optimized tip-groove contact area
Viscous-damped Dynamic Stabilizer overcomes record warp and electrostatically neutralizes record
 surface

1982 V15 Type V
Ultra-thin-wall beryllium stylus shank
MASAR-polished tip to reduce friction
Packaged with Duo-Point Alignment gauge to minimize lateral tracking angle error

1983 V15 Type V-MR Micro-Ridge
Stylus tip emulates shape of cutting stylus for unsurpassed trackability, particularly in high frequency
 range

1997 V15VxMR: Preis: 500 DM
Warmer and more musical than ever

Annotation: For technical data please look at data sheet V-15 (Braun Service Manual PCS 5) and V-15 Type II …V specification in the above picture upload

Mentioned in - - Manufacturers Literature (Braun Service Manual 62-66, stereo)
Literature/Schematics (1) Funk-Technik (FT) (10/1967, S. 359, 360 / Beschreibung (V 15 - II))

Model page created by Eberhard Fuchs. See "Data change" for further contributors.
