Stereo Conversion Preamplifier M65E

Stereo Conversion Preamplifier M65E; Shure; Chicago, (ID = 2520193) Ampl/Mixer

Stereo Conversion Preamplifier M65E; Shure; Chicago, (ID = 2520194) Ampl/Mixer

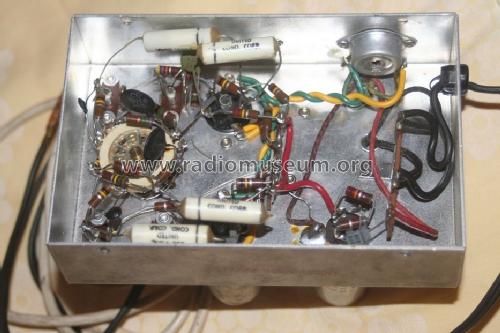

Stereo Conversion Preamplifier M65E; Shure; Chicago, (ID = 1710276) Ampl/Mixer Stereo Conversion Preamplifier M65E; Shure; Chicago, (ID = 1710277) Ampl/Mixer

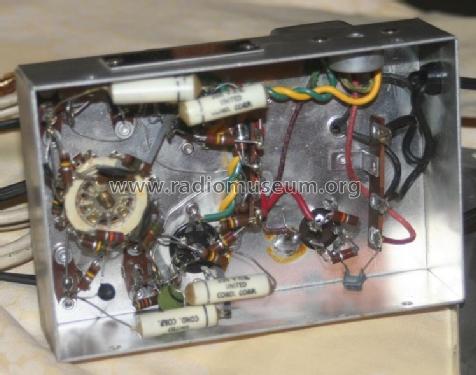

Stereo Conversion Preamplifier M65E; Shure; Chicago, (ID = 1710279) Ampl/Mixer Stereo Conversion Preamplifier M65E; Shure; Chicago, (ID = 1710281) Ampl/Mixer
Stereo Conversion Preamplifier M65E; Shure; Chicago, (ID = 1710282) Ampl/Mixer
Use red slider bar for more.
Stereo Conversion Preamplifier M65E; Shure; Chicago, (ID = 1710276) Ampl/Mixer
Shure; Chicago,: Stereo Conversion Preamplifier M65E [Ampl/Mixer] ID = 1710276 933x684
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Conversion Preamplifier M65E, Shure; Chicago, Evanston, Niles (IL):
Ebay auction by user ad-1 331307607848

Country:  United States of America (USA)
Manufacturer / Brand:  Shure; Chicago, Evanston, Niles (IL)
Year: 1962 ? Category: Audio Amplifier or -mixer
Valves / Tubes 2: ECC83 or 12AX7 ECC83 or 12AX7
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Conversion Preamplifier M65E - Shure; Chicago, Evanston,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 175 x 100 x 95 mm / 6.9 x 3.9 x 3.7 inch
Notes

RIAA stereo conversion preamplifier. European 220 V version.

Mentioned in Funk-Technik (FT) (12/1962, S. 412 / Beschreibung, Daten, Schema)
