Crosley 243A

Crosley 243A; SIARE -Crosley; (ID = 1626790) Radio Crosley 243A; SIARE -Crosley; (ID = 1138390) Radio
Crosley 243A; SIARE -Crosley; (ID = 1138391) Radio Crosley 243A; SIARE -Crosley; (ID = 1138392) Radio

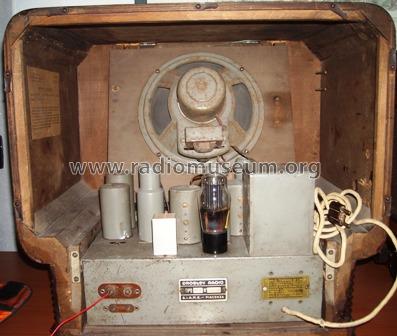

Crosley 243A; SIARE -Crosley; (ID = 1170205) Radio Crosley 243A; SIARE -Crosley; (ID = 1214630) Radio
Crosley 243A; SIARE -Crosley; (ID = 1626791) Radio Crosley 243A; SIARE -Crosley; (ID = 1626792) Radio
Use red slider bar for more.

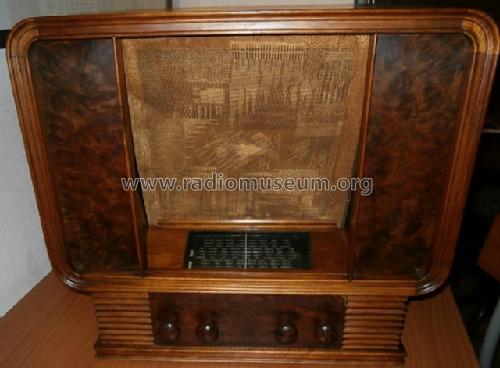

Crosley 243A; SIARE -Crosley; (ID = 1626790) Radio
SIARE -Crosley;: Crosley 243A [Radio] ID = 1626790 640x472
Select picture or schematic to display from thumbnails on the right and click for download.
For model Crosley 243A, SIARE (-Crosley); Piacenza

Country:  Italy
Manufacturer / Brand:  SIARE (-Crosley); Piacenza
Year: 1936/1937 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 75 42 80
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Crosley 243A - SIARE -Crosley; Piacenza
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

Modello precedente rispetto al simile 429, ancora a marchio e stemma Crosley, tela ribaltabile per visione scala parlante.

Controllo di tono. Ingresso Fono.

Mentioned in Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

Model page created by Antonio Ronchi. See "Data change" for further contributors.
