For model 22G, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1930–1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: RE084s RE134S
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast and LongWave in ONE range.
Details
Power type and voltage Direct Current supply (DC) / 110-220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 22G - Siemens; D S.& Halske / S.
Material Wooden case
Dimensions (WHD) 330 x 210 x 130 mm / 13 x 8.3 x 5.1 inch
Notes [501] Ein Gerätebericht findet sich in der Funkschau 1931, Heft 46
Price in first year of sale 99.00 RM !
Source of data Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb

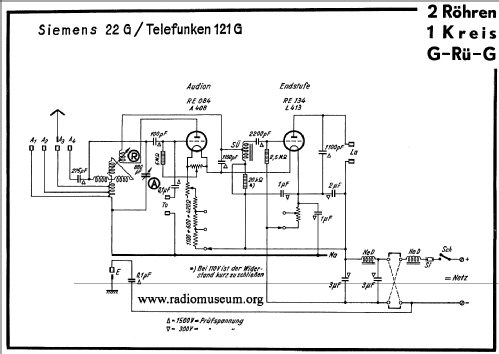

Circuit diagram reference Lange + FS-Bestückungstabellen
Mentioned in Katalog Radio-Zentrale Prohaska 1931/32
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
