23GL
 |
 |
 |
 |
 |
 |
 |
 |
 |
Use red slider bar for more.
Siemens; D S.&: 23GL [Radio] ID = 2175818 895x1257
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1932/1933 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 2: RENS1820 RENS1823d |
|---|
| Main principle | TRF with regeneration; 1 AF stage(s) |
|---|---|
| Tuned circuits | 1 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Direct Current supply (DC) / 110-220 Volt |
| Loudspeaker | Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931). |
| Power out | |
| from Radiomuseum.org | Model: 23GL - Siemens; D S.& Halske / S. |
| Material | Bakelite case |

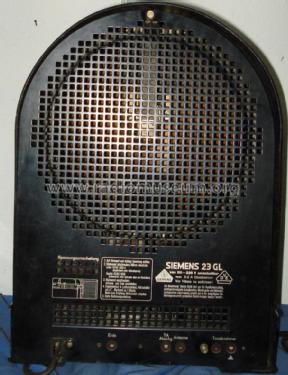

| Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |
| Notes | Siehe auch Paralleltype Telefunken 122GL mit anderem Gehäuse. |
| Price in first year of sale | 145.00 RM ! |
| Collectors' prices | |
| Source of data | Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb |
| Circuit diagram reference | Lange + FS-Bestückungstabellen |

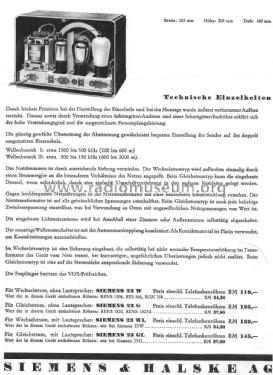

| Picture reference | Das Modell ist im «Radiokatalog» (Erb) abgebildet. |
