26WLK

• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5413

• Picture

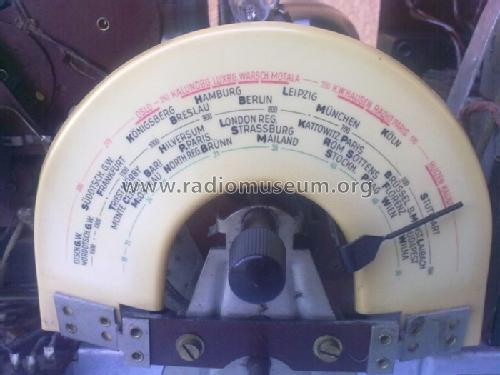

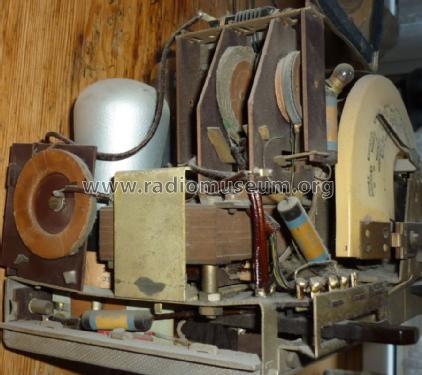

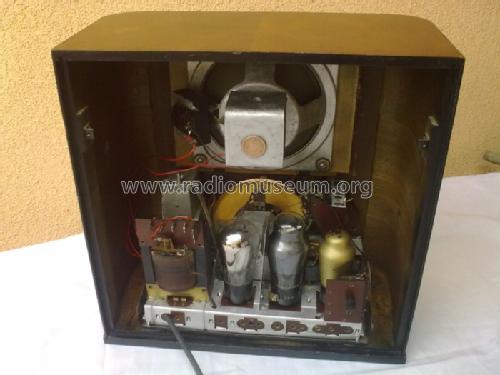

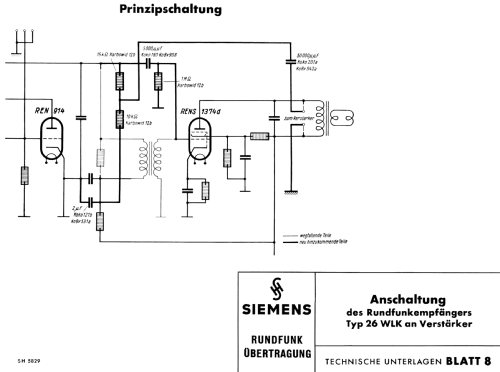

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• REN914 RENS1374d RGN564

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

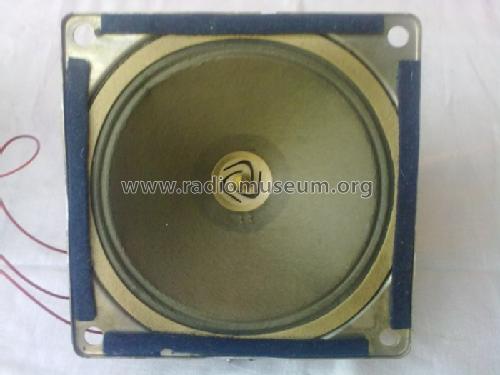

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17.5 cm = 6.9 inch

• Power out
• 2 W (unknown quality)

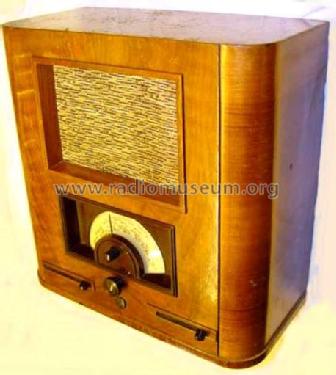

• Material
• Wooden case

• from Radiomuseum.org
• Model: 26WLK - Siemens & Halske, -Schuckert

• Dimensions (WHD)
• 370 x 370 x 170 mm / 14.6 x 14.6 x 6.7 inch

• Notes

• Bedienbare Rückkopplung, über Stufenschalter variierbare Antennenkopplung, MW Sperrkreis, Anschluß für Tonabnehmer.

  Parallelgerät zum AEG 34WLK und Telefunken 127WLK.

• Net weight (2.2 lb = 1 kg)
• 7.7 kg / 16 lb 15.4 oz (16.96 lb)

• Price in first year of sale
• 159.00 RM

• Source of data
• Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Radio-Katalog, Mix & Genest Hansawerke, 1935
