31bW; Siemens; D S.& (ID = 97558) Radio

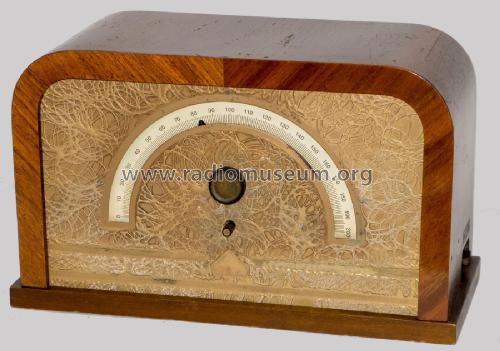

Siemens; D S.&: 31bW [Radio] ID = 97558 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model 31bW, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: REN1004 REN1004 RE134 RGN354
Main principle TRF without regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast and LongWave in ONE range.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 31bW - Siemens; D S.& Halske / S.
Material Wooden case
Dimensions (WHD) 380 x 220 x 160 mm / 15 x 8.7 x 6.3 inch
Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen

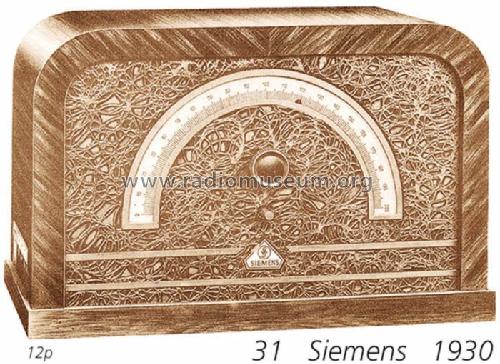

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
