35G; Siemens; D S.& (ID = 936) Radio

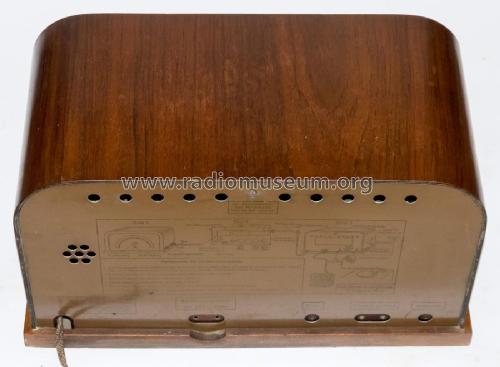

Siemens; D S.&: 35G [Radio] ID = 936 678x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model 35G, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RENS1820 REN1821 REN1822 or RENS1823d
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast and LongWave in ONE range.
Details
Power type and voltage Direct Current supply (DC)
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 35G - Siemens; D S.& Halske / S.
Material Wooden case
Dimensions (WHD) 410 x 220 x 200 mm / 16.1 x 8.7 x 7.9 inch
Notes [501]
Price in first year of sale 235.00 RM !
Source of data Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in Funkgeschichte der GFGF (9282)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Siemens; D (S.& Halske / S. Electrogeräte)
Here you find 2432 models, 2012 with images and 1267 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
