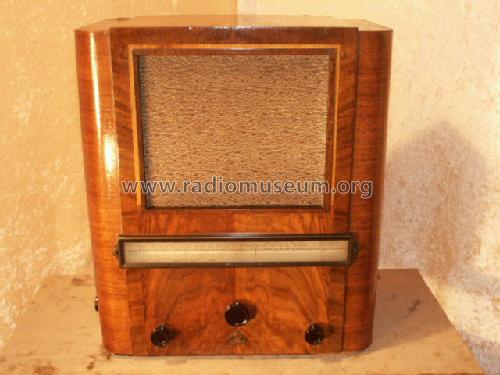

Siemens; D S.&: 46aWL [Radio] ID = 116170 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1932/1933 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: RENS1214 RENS1214 REN904 RES164 RGN564 |
|---|
| Main principle | TRF (Tuned-Radio-Frequency but use of regeneration unknown); ZF/IF 2 kHz; 1 AF stage(s); Anode bend detection |
|---|---|
| Tuned circuits | 3 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: 46aWL - Siemens; D S.& Halske / S. |
| Material | Wooden case |
| Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |
| Dimensions (WHD) | 440 x 530 x 270 mm / 17.3 x 20.9 x 10.6 inch |
| Notes |
Gleiche Ausführung wie 46WL, nur eckige Form. Linearskala. |
Model page created by Peter Wölfel. See "Data change" for further contributors.
