• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1963/1964

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 99144

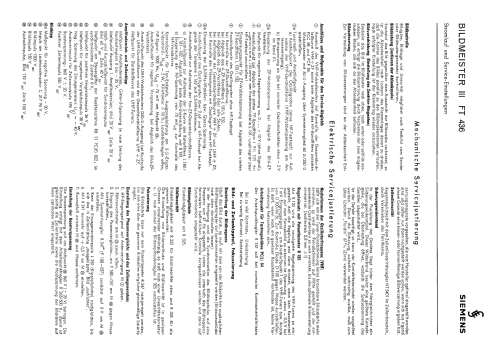

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• PCC88 PCF86 EF183 EF80 EF80 PCL84 EF80 PCL86 ECH84 PCL85 PCF802 PL500 PY88 DY86 A59-11W or A59-12W

• Number of Transistors
• 2

• Semiconductors
• 2N2398 AF139 OA161 OA172 OA172 E37,5C5 E37,5C5 OY101

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

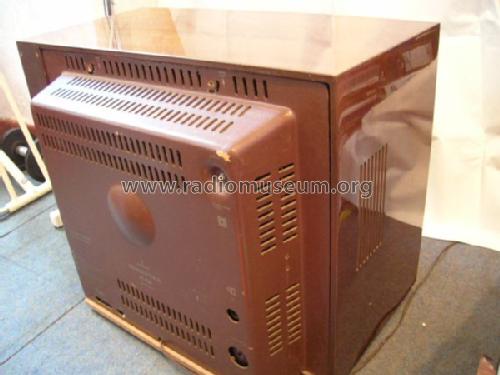

• Model: Bildmeister III FT436 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 700 x 520 x 410 mm / 27.6 x 20.5 x 16.1 inch

• Notes

• SW-TV mit VHF/UHF-Tuner nach CCIR B/G, Frontabdeckung mit Schieberollo. Gehäuse in Birnbaum, dunkel; Aufpreis für Nußbaum oder Teak 20,- DM.

  Das Handbuch RFP 1963/64 nennt einen Grundpreis von DM 1'118,-

  Fernbedienung FE41-25 DM 29,-
  Anschraubbare Beine FE45-5 DM 25,-

• Net weight (2.2 lb = 1 kg)
• 32.4 kg / 71 lb 5.9 oz (71.366 lb)

• Price in first year of sale
• 1,048.00 DM

• Source of data
• Handbuch VDRG 1963/1964

• Mentioned in
• Handbuch RFP 1963 (S.119)
