Dorado FS132151

Dorado FS132151; Siemens-Austria WSW; (ID = 138617) Television

Dorado FS132151; Siemens-Austria WSW; (ID = 138618) Television
Dorado FS132151; Siemens-Austria WSW; (ID = 2396063) Television Dorado FS132151; Siemens-Austria WSW; (ID = 2428870) Television

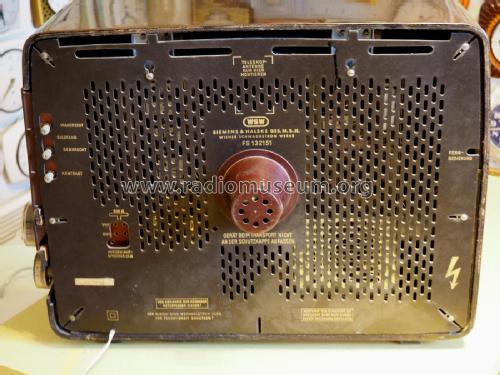

Dorado FS132151; Siemens-Austria WSW; (ID = 2428872) Television Dorado FS132151; Siemens-Austria WSW; (ID = 2428871) Television
Dorado FS132151; Siemens-Austria WSW; (ID = 2428868) Television Dorado FS132151; Siemens-Austria WSW; (ID = 2428873) Television
Dorado FS132151; Siemens-Austria WSW; (ID = 443044) Television Dorado FS132151; Siemens-Austria WSW; (ID = 138619) Television
Dorado FS132151; Siemens-Austria WSW; (ID = 150403) Television Dorado FS132151; Siemens-Austria WSW; (ID = 443045) Television
Use red slider bar for more.
Dorado FS132151; Siemens-Austria WSW; (ID = 2396063) Television
Siemens-Austria WSW;: Dorado FS132151 [Television] ID = 2396063 933x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dorado FS132151, Siemens-Austria (WSW); Wien:
Q: Siemens, (WSW Wien)), Prospekt 1960

Country:  Austria
Manufacturer / Brand:  Siemens-Austria (WSW); Wien
alternative name

Ges. für Technische Glaswaren
Brand
Wiener Schwachstrom Werke (WSW)
Year: 1960 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PCC88 PCF80 EF183 EF184 EF184 PCL84 PCF80 ECH81 PABC80 EF184 PCL86 PCF80 PL84 PCF80 PL36 PY81 or PY88 DY87 AW59-90
Semiconductors (the count is only for transistors) NTK
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Dorado FS132151 - Siemens-Austria WSW; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 610 x 480 x 410 mm / 24 x 18.9 x 16.1 inch
Notes Empfangsbereich VHF Band I + III, Kanal 2a - 12. UHF vorbereitet.
Net weight (2.2 lb = 1 kg) 25 kg / 55 lb 1.1 oz (55.066 lb)
Price in first year of sale 6'580.00 öS
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
