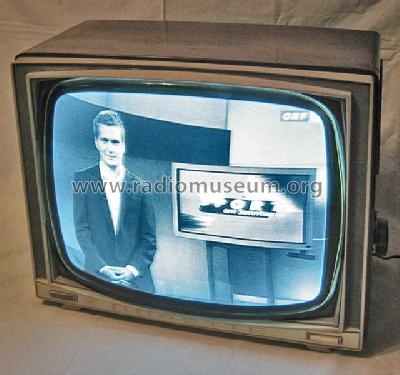

Dorette FS132141
Siemens-Austria (WSW); Wien
- Country
- Austria
- Manufacturer / Brand
- Siemens-Austria (WSW); Wien
- Year
- 1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 84343
-
- alternative name: Ges. für Technische Glaswaren
- Brand: Wiener Schwachstrom Werke (WSW)
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- PCC88 PCF80 EF183 EF184 EF184 PCL84 PCF80 ECH81 PABC80 EF184 PCL86 PCF80 PL84 PCF80 PL36 PY81 or PY88 DY87 19ASP4
- Number of Transistors
- Semiconductors
- NTK
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Dorette FS132141 - Siemens-Austria WSW; Wien
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 500 x 410 x 300 mm / 19.7 x 16.1 x 11.8 inch
- Notes
- Empfangsbereich VHF Band I + III, Kanal 2a - 12. UHF vorbereitet.
- Net weight (2.2 lb = 1 kg)
- 18 kg / 39 lb 10.4 oz (39.648 lb)
- Price in first year of sale
- 5,585.00 ATS
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
