• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1930

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 5446

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• REN1104 RE604 RE604 R250

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

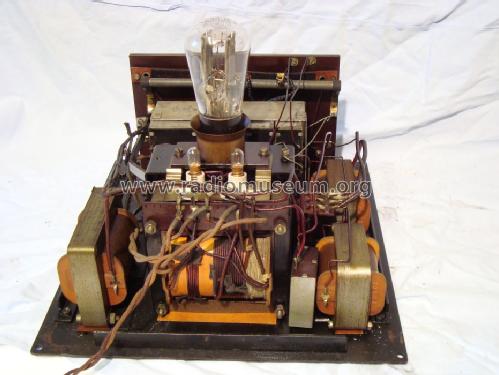

• Model: Netzanschlussverstärker Elv/Eln841W - Siemens & Halske, -Schuckert

• Notes

• 2 Metallgehäuse, Verstärker und Stromversorgung getrennt.

  Preis ohne Röhren, zusätzlich Röhrensatz 83,50 RM

• Price in first year of sale
• 400.00 RM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Mentioned in
• - - Manufacturers Literature (Siemens Prospekt 1930 SH3930a)

• Literature/Schematics (1)
• Lange / Nowisch, "Empfängerschaltungen der Radioindustrie"
