Fernschreib-Sendermesser 125
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1970 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 350058

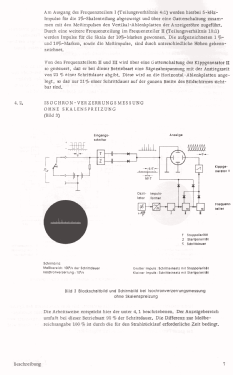

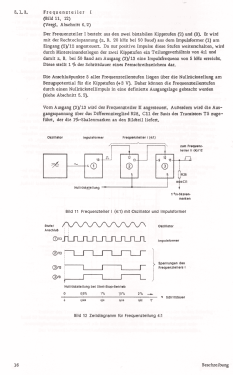

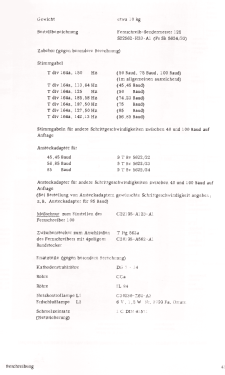

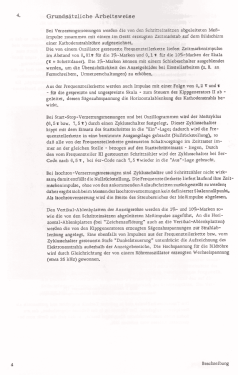

Original aus Handbuch
Original aus Handbuch
Original aus Handbuch
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 180; 220; 240 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Fernschreib-Sendermesser 125 - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 135 x 255 x 385 mm / 5.3 x 10 x 15.2 inch
- Notes
-
Der Fernschreib-Sendermesser 125 ist ein universelles Meßgerät zur Messung an Fernschreibanlagen zum Mess- und Wartungsdienst.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Rudolf Müller. See "Data change" for further contributors.
