FM/MW/LW/SW - PLL synthesized receiver RP 654 G4

FM/MW/LW/SW - PLL synthesized receiver RP 654 G4; Siemens; D S.& (ID = 2010374) Radio FM/MW/LW/SW - PLL synthesized receiver RP 654 G4; Siemens; D S.& (ID = 2010379) Radio
FM/MW/LW/SW - PLL synthesized receiver RP 654 G4; Siemens; D S.& (ID = 2010376) Radio FM/MW/LW/SW - PLL synthesized receiver RP 654 G4; Siemens; D S.& (ID = 2010375) Radio
FM/MW/LW/SW - PLL synthesized receiver RP 654 G4; Siemens; D S.& (ID = 2010377) Radio FM/MW/LW/SW - PLL synthesized receiver RP 654 G4; Siemens; D S.& (ID = 2010378) Radio
FM/MW/LW/SW - PLL synthesized receiver RP 654 G4; Siemens; D S.& (ID = 2628374) Radio FM/MW/LW/SW - PLL synthesized receiver RP 654 G4; Siemens; D S.& (ID = 2628375) Radio
Use red slider bar for more.
FM/MW/LW/SW - PLL synthesized receiver RP 654 G4; Siemens; D S.& (ID = 2010374) Radio
Siemens; D S.&: FM/MW/LW/SW - PLL synthesized receiver RP 654 G4 [Radio] ID = 2010374 1400x1175
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/MW/LW/SW - PLL synthesized receiver RP 654 G4, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1994 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 230 / UM2: 4 x 1,5 & for clock backup R6: 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: FM/MW/LW/SW - PLL synthesized receiver RP 654 G4 - Siemens; D S.& Halske / S.
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 287 x 132 x 90 mm / 11.3 x 5.2 x 3.5 inch
Notes

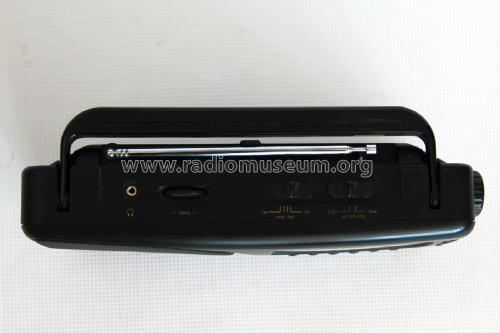

4-Band portabler Uhrenempfänger mit 63cm dreh- und schwenkbarer Teleskopantenne, Bandwahl-, Sensivityschalter, Tonblende und 3,5mm Ohrhöreranschluss oben; Lautstärkeregler und Alarmwahl rechts; Tastatursperre unten, Alarmfunktionen, Abstimmung Auf/Ab (automatischer Suchlauf), Ein/Aus-Taster, Schalter für Displaybeleuchtung, LCD-Display und 6 Tasten für Stationstasten (5 Speicher- und eine Programmiertaste) vorn.

Empfangsbereiche:
UKW: 87,5 - 108MHz,
KW: 5,9 - 15,5MHz,
MW: 531 - 1602kHz,
LW: 153 - 281kHz.

Leistungsaufnahme max. 4W.


Net weight (2.2 lb = 1 kg) 1.120 kg / 2 lb 7.5 oz (2.467 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
