Grazietta 543B

Grazietta 543B; Siemens-Austria WSW; (ID = 9534) Radio

Grazietta 543B; Siemens-Austria WSW; (ID = 173037) Radio
Grazietta 543B; Siemens-Austria WSW; (ID = 3069) Radio Grazietta 543B; Siemens-Austria WSW; (ID = 527665) Radio
Grazietta 543B; Siemens-Austria WSW; (ID = 121897) Radio Grazietta 543B; Siemens-Austria WSW; (ID = 527666) Radio
Grazietta 543B; Siemens-Austria WSW; (ID = 587477) Radio Grazietta 543B; Siemens-Austria WSW; (ID = 2424) Radio
Grazietta 543B; Siemens-Austria WSW; (ID = 87882) Radio Grazietta 543B; Siemens-Austria WSW; (ID = 3070) Radio

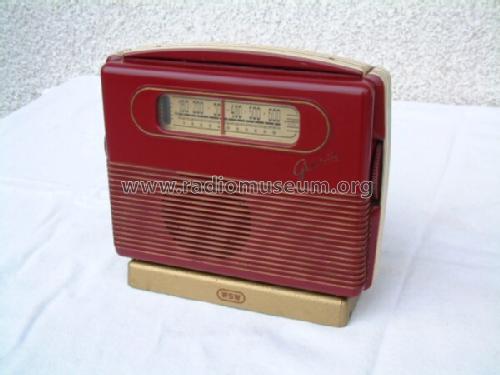

Grazietta 543B; Siemens-Austria WSW; (ID = 74353) Radio Grazietta 543B; Siemens-Austria WSW; (ID = 74354) Radio
Use red slider bar for more.

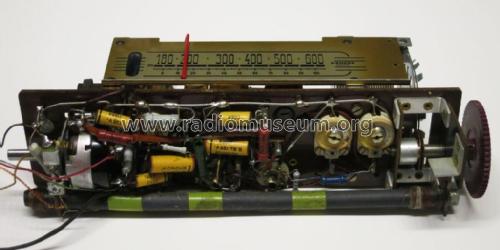

Grazietta 543B; Siemens-Austria WSW; (ID = 3069) Radio
Siemens-Austria WSW;: Grazietta 543B [Radio] ID = 3069 578x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grazietta 543B, Siemens-Austria (WSW); Wien:
Siemens Austria Grazietta, 543B

Country:  Austria
Manufacturer / Brand:  Siemens-Austria (WSW); Wien
alternative name

Ges. für Technische Glaswaren
Brand
Wiener Schwachstrom Werke (WSW)
Year: 1954–1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DK92 DF96 DAF91 DL94 DM70
Main principle Superheterodyne (common); ZF/IF 456 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 67,5 & 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: Grazietta 543B - Siemens-Austria WSW; Wien
Material Moulded (Bakelite or Plastics)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 225 x 180 x 66 mm / 8.9 x 7.1 x 2.6 inch
Notes Netzgerät 541NG; (NA) zu 295,-; Sparschalter, LS-Buchsen hinten [MB0001B]. Abgleich und Seilführung sind dem Serviceblatt Grazietta 541B zu entnehmen.
Net weight (2.2 lb = 1 kg) 1.9 kg / 4 lb 3 oz (4.185 lb)
Price in first year of sale 765.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Mentioned in Radiotechnik, Die, Wien (RT 42) (5510B)
Literature/Schematics (1) -- Original-techn. papers. (0)
Literature/Schematics (2) Museums Bote, Österr. (Heft 101/2000, S.7 ff, Gerätebeschreibung)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Siemens-Austria (WSW); Wien
Here you find 198 models, 175 with images and 130 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Siemens-Austria WSW;: Grazietta 543B
Threads: 1 | Posts: 1
Hits: 2043     Replies: 0
siemens: Grazietta 543B
Gerhard Heigl
19.Jul.02

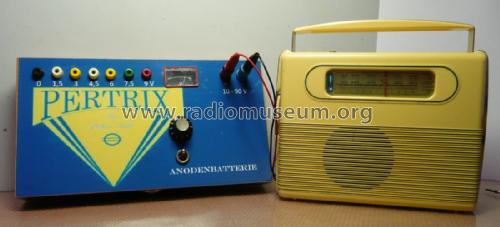

  1 Betrieb: 67,5V 2x1,5V Mono parallel.

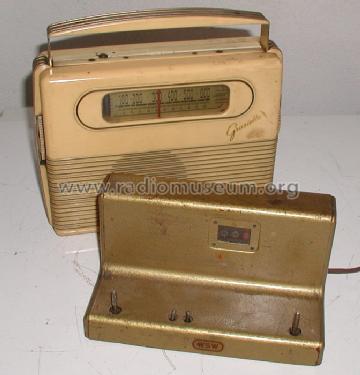

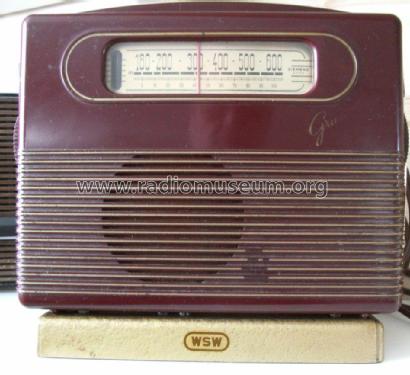

Als Option das Untersatznetzgerät 541NA.

Siemens-Austria WSW;: Grazietta 543B
