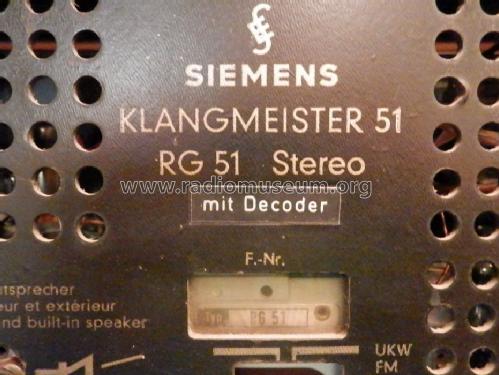

Klangmeister 51 RG51

• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25715

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC83 EMM803 ELL80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Klangmeister 51 RG51 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 687 x 218 x 180 mm / 27 x 8.6 x 7.1 inch

• Notes
• Dioden: 2× AA113. Stereo-Decoder (mit AF128, 2× AF126) eingebaut, auf Wunsch auch ohne Decoder; Stereo-NF-Verstärker mit 2 Endstufen je 3,5 W.

• Net weight (2.2 lb = 1 kg)
• 9.2 kg / 20 lb 4.2 oz (20.264 lb)

• Price in first year of sale
• 578.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965

• Other Models

• Here you find 2514 models, 2111 with images and 1325 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
