• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1964

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 137472

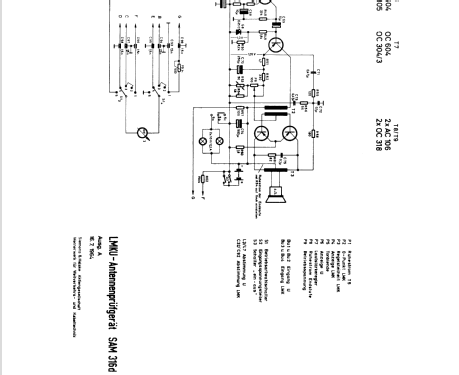

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• OC615V OC615M OC614 AF105 AF105 OC604 or. OC305 OC604 or. OC304 AC106 or. OC318 AC106 or. OC318 BA110 OA90 OA172 OA172 RL32 RL32 E37,5C5 E25C25 E25C5

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / D: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

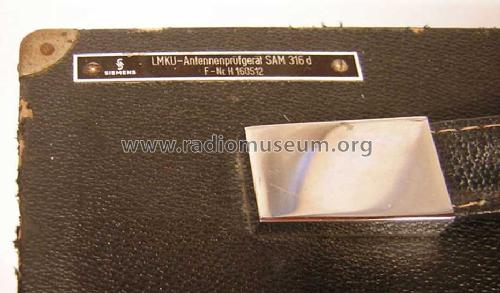

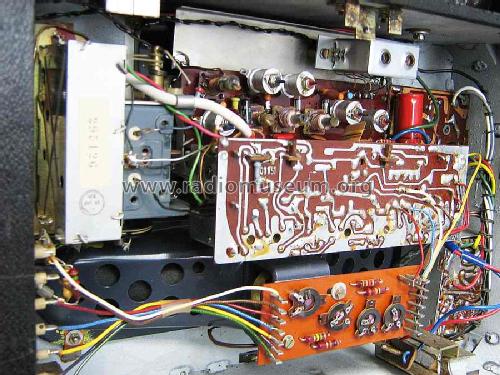

• Model: LMKU-Antennenprüfgerät SAM 316d - Siemens & Halske, -Schuckert

• Shape

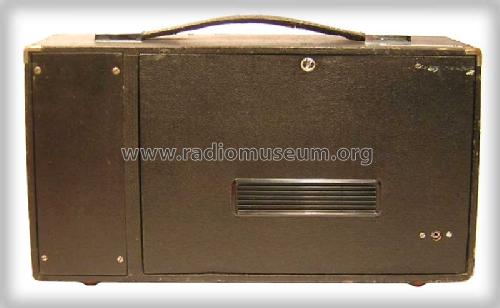

• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 410 x 230 x 135 mm / 16.1 x 9.1 x 5.3 inch

• Notes

• Siemens SAM 316d, LMKU-Antennenprüfgerät;
  Transistor-Super ähnlich Akkord Pinguin Royal eingebaut in Transportkoffer mit angeschlossenem Feldstärkeinstrument, ext. Antenneneingänge und schaltbarem Abschwächer.
  UKW bis 104 MHz,
  KW: 5,8 - 12,3 MHz.

• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)

• Mentioned in
• Funk-Technik (FT) (14/1964, S. 510 / Neuvorstellung, Daten)

• Literature/Schematics (1)

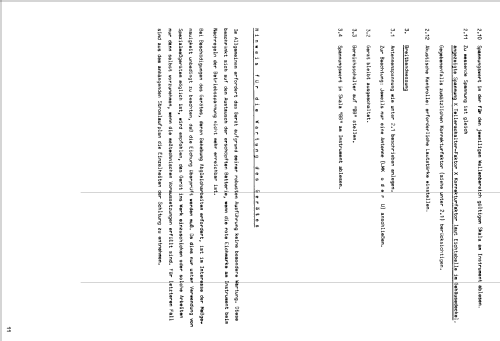

• -- Original-techn. papers.
