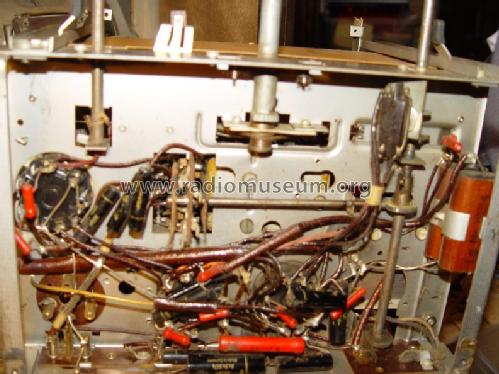

Merkur 81W; Siemens; D S.& (ID = 432466) Radio Merkur 81W; Siemens; D S.& (ID = 493647) Radio
Use red slider bar for more.
Merkur 81W; Siemens; D S.& (ID = 143654) Radio
Siemens; D S.&: Merkur 81W [Radio] ID = 143654 933x641
Select picture or schematic to display from thumbnails on the right and click for download.
For model Merkur 81W, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: AF7 AL4 AZ1
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Merkur 81W - Siemens; D S.& Halske / S.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 270 x 250 mm / 20.9 x 10.6 x 9.8 inch
Notes Stromsparschalter
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 138.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
