For model Super 460U, Siemens-Austria (WSW); Wien:
Siemens 460U

Country:  Austria
Manufacturer / Brand:  Siemens-Austria (WSW); Wien
alternative name

Ges. für Technische Glaswaren
Brand
Wiener Schwachstrom Werke (WSW)
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH21 UCH21 UBL21 UY1N UM4
Semiconductors (the count is only for transistors) NTC-Resistor
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Super 460U - Siemens-Austria WSW; Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 275 x 200 mm / 16.5 x 10.8 x 7.9 inch
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Radiotechnik, Die, Wien (RT 42) (4910B)

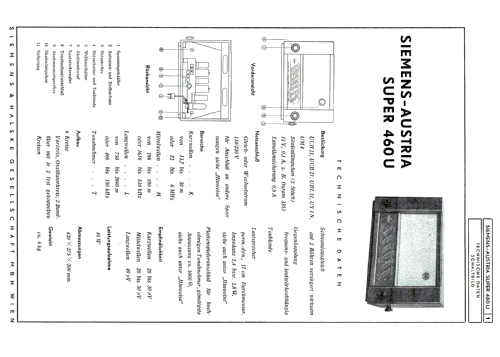

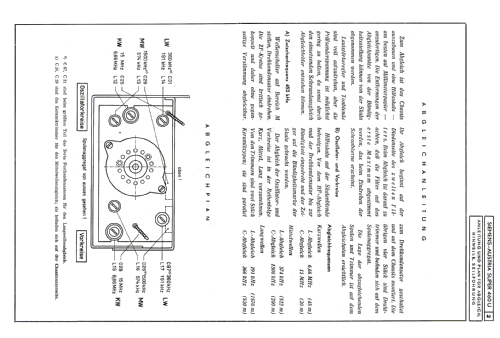

Literature/Schematics (1) -- Original-techn. papers.
