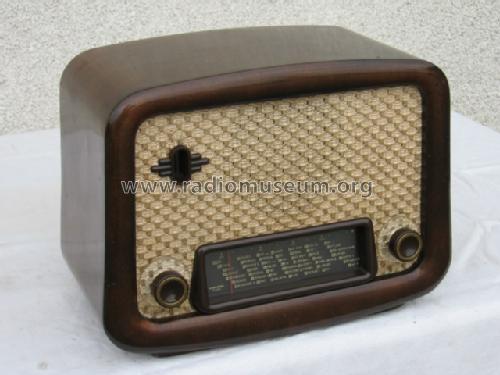

Rondo-Super 542U; Siemens-Austria WSW; (ID = 128551) Radio
Siemens-Austria WSW;: Rondo-Super 542U [Radio] ID = 128551 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rondo-Super 542U, Siemens-Austria (WSW); Wien:
Siemens Rondo-Super 542U

Country:  Austria
Manufacturer / Brand:  Siemens-Austria (WSW); Wien
alternative name

Ges. für Technische Glaswaren
Brand
Wiener Schwachstrom Werke (WSW)
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH21 UCH21 UBL21 UY21 DM70
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110; 125; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Rondo-Super 542U - Siemens-Austria WSW; Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 270 x 245 x 170 mm / 10.6 x 9.6 x 6.7 inch
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 765.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Mentioned in Radiotechnik, Die, Wien (RT 42) (5311B)
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Siemens-Austria (WSW); Wien
Here you find 198 models, 175 with images and 130 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
